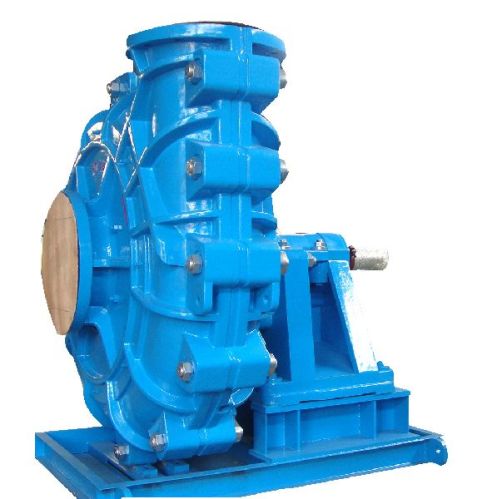

20/18 Centrifugal Slurry Pump

Main Features A large percentage of duties allow the use of the ce ntrifugal seal which eliminates the need of sealing water.Gland shaft sealA packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.Shaft and bearing assemblyA large diameter shaft with a short overhang minimizes deflection and vibration.Heavy-duty roller bearings are housed in a removable bearing cartridge.Pump BaseA minimum number if through bolts hold the pump casing to the frame .A means of impeller adjustment is provided in a convenient position below the bearing housing.Outer Casing Split outer casing halves of cast or ductile iron contain the wear liners and provide high operation pressure capabilities.ImpellerThe impeller may be either moulded elastomer or hard metal.Deep side sealing vanes relieve seal pressure and minimize recirculation. Cast-in impeller threads are better suited for slurries.Interchangeable hard metal and moulded elastomer liners.Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement.Hydraulic seal rings give positive sealing between mating faces. Model   -AH Allowable Max. Power (Kw) Capacity Q Head    (м) Speed (rmin) Efficiency η% NPSH (m) m³h ls 1.51B 15 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 21.5B 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 32C 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 43
