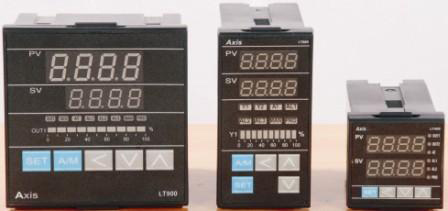

Axis LT Series Digital Temperature PID Process Controller

Get Latest Price

Frequency60Hz
Driven TypeBattery
CertificationCE Certified
Display TypeDigital
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Dydac Controls

Mayur Vihar, Delhi

4.5/5

(28)

View Number

Member Since 17 Years
Nature of Business Retailer
GST No. 07AAAPZ3472H1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerDigital Temperature Controller
CertificationCE Certified
Availability.200-400gm
ApplicationHousehold, Industrial, Outdoor
Display TypeDigital
TheoryBimetal Thermometer, Temperature Controller
Frequency60Hz
Power110V
Driven TypeBattery

We are instrumental in offering Axis LT Series Digital Temperature PID Process Controller to our buyers throughout the world. We offer the PID Process Controller in various modes to cater to variegated demands of the customer.
More about Axis LT Series Digital Temperature PID Process Controller : The Axis family of microprocessor based controllers combine a high degree of functionality and reliability at a very low price, in 4 different formats: 1/16 DIN, 1/8 DIN, 1/ 4 DIN.

They are ideal controllers for regulating temperature in a variety of applications, including:

Dryers.
Semiconductor packaging /testing.
Plastic processing.
Packaging machinery.
Painting and coating.
Climatic chambers.

The Axis family satisfies low cost basic control requirements and also provides advanced features such as motor position control, phase angle power control and Setpoint programming Dual displays and Bargraph. Programmer functionality.
Two 4 digits displays and one LED bargraph to display the PV and SP.Easy to configure. Two different configuration levels provide easy access to parameters.A 4-digit security code prevents unauthorized changes. Parameters can be hidden to the user to prevent misconfiguration of the unit.

Various Control algorithms.

PID or ON/OFF control.
Heat/Cool Algorithm.
Motor Position control.
Single phase or 3 phase control.
2 programs available, each of 8 segments. Programs can be linked to form a single 16 segments program. Extended Alarm capability.
Up to 3 different alarm outputs per instrument, 17 different alarm modes available.

Universal Power supply : Operates on any line voltage from 85Vac to 265Vac at 50/60Hz.

Standard Specifications

Model		LT 400	LT 600	LT 700	LT 800	LT 900
Dimension		48X48mm	96X48mm	72X72mm	48X96mm	96X96mm
Supply voltage		AC 85~265VDC 15~50V (Option)					AC 85~265V
Frequency		50 / 60 HZ
Power		approx	approx	approx	approx	approx	approx	approx
consumption		3VA	4VA	3VA	4VA	4VA	4VA	3VA
Input	Accuracy	0.2 % FS ± 1digit
	Sample time	250ms
	TC	K , J , R , S , B , E , N , T , W5Re/W26Re , PLII , U , L
	RTD	PT100,JPT100,JPT50
	mA dc	4~20mA ,0~20mA
	mV / V dc	0~1V,0~5V,0~10V,1~5V,2~10V
	Decimal point	0000 , 000.0 , 00.00 , 0.000
	position	Available for linear input (mA / mV / V)
Output	Relay	SPST type	SPDT type	SPST type	SPDT type	SPDT type	SPDT type	SPDT type
		3A , 220V , electrical life:100,000 times or more (under rated load)
	Voltage pulse	For SSR drive. ON : 24V , OFF : 0V , max load current : 20mA
	mA dc	4~20mA, 0~20mA. Maximum load resistance:560
	Voltage dc	0~5V , 0~10V , 1~5V , 2~10V . Max load current:20mA
Alarm 1		3A , 220V , electrical life:100,000 times or more (under rated load)
Control algorithm		PID,PI,PD,P,ON / OFF(P=0),FUZZY
PID range		P: 0.0 ~ 200.0 %,I: 0~3600s,D: 0~900s
Isolation		Output terminals(control output , alarm , transmission) and input terminals are isolated separately
Isolated resistance		10M or more between input and case (ground) at DC 500 V10M or more between output and case (ground) at DC 500 V
Dielectric strength		1000V AC for 1 minute between input terminal and case (ground) 1500V AC for 1 minute between output terminal and case (ground)
Operating temperature		0~50
Humidity range		20~90%RH
Weight		150g	225g	225g	225g	300g	130g	80g
Display Height		PV - 7mm S - 7mm	PV - 7mm SV – 7mm	PV-14mm, SV-10mm	PV - 7mm, SV – 7mm	PV – 14 MM, SV – 10 MM	-	-

Optional Specifications

Model		LT 600	LT 700	LT 800	LT 900
Output 2	For heating and cooling control use. Relay , SSR , 4~20mA , 0~20mA , 0~5V , 0~10V , 1~5V , 2~10V
Alarm 2	Available	Available	Available	Available	Available	Available	Not available
	SPST type	SPDT type	SPST type	SPDT type	SPDT type	SPDT type	Not available
	3A , 220V , electrical life:100,000 times or more (under rated load)
	Not available	Available	Available	Available	Available	Available	Not available
Alarm 3	Not available	SPST type	SPST type	SPST type	SPST type	SPST type	Not available
	3A , 220V , electrical life:100,000 times or more (under rated load)
Heater Break Alarm (HBA)	Display range of heater current : 0.0~99.9A , Accuracy : 1%FS
	Included CT : SC-80-T (5.8mm dia , 0.0~80.0A) or SC-100-T (12mm dia , 0.0~99.9A)
	Alarm relay : AL1
Transmission	Available for PV or SV transmission
	4~20mA , 0~20mA , 0~1V , 0~5V , 0~10V , 1~5V , 2~10V
Remote SV	4~20mA , 0~20mA , 0~1V , 0~5V , 0~10V , 1~5V , 2~10V
Communication	Protocol : MODBUS RTU , MODBUS ASCII , TAIE
	RS232 , RS485 , TTL
	Baud rate: 2400 , 4800 , 9600 , 19200 , 38400 bps.
	Data bits : 8 , Stop bit : 1 or 2bit , Odd or Even parity.
Water/Dust proof	IP65

Special Control Output (OUT1)

Model	LT 400	LT 600	LT 700	LT 800	LT 900
1φ zero crossing control(1φSSR)	Available	Not available	Available	Not available	Available	Not available	Not available
1φ zero crossing control(1φSSR)	Available	Not available	Available	Not available	Available	Not available	Not available
3φ zero crossing control(3φSSR)	Not available				Available	Not available	Not available
3φ zero crossing control(3φSSR)	Not available				Available	Not available	Not available
Motor valve control	Available
1φ phase angle	Not available	Available				Available	Not available
control(1φSCR)	Not available	Available				Available	Not available
3φ phase angle	Not available				Available	Not available	Not available
control(3φSCR)	Not available				Available	Not available	Not available
