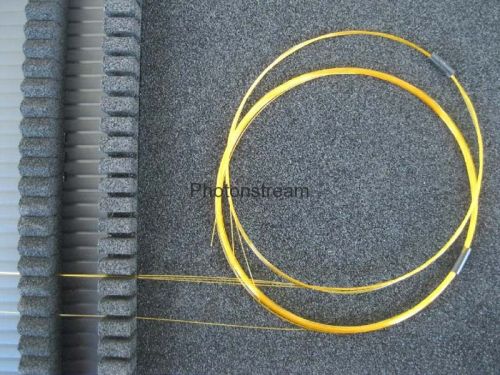

200 Micron Core Optical Fiber

Specifications
200 Micron Core Optical Fiber for High Power Laser Delivery
Low OH - least attenuation of VIS and IR wave length
200 Micron Core Optical Fiber for High Power Laser Delivery
Product Feature:
Low OH - least attenuation of VIS and IR wave length
Excellent coreclad concentricity — Ease of coupling to pump diodes
High temperature sustain — Reduce fiber burn for high energy laser
Product Application:
Fiber coupled diode lasers
Couplers and pump combiners
High power laser optical fiber jumper
Industry optical fiber sensor
Datasheet:
MM-S200220-22-AC MM-S200220-22-PO MM-S200230-22-HP MM-S200220-22-AU
Optical
Specifications
Operating Wavelength 600 – 1800 nm 600 – 1800 nm 600 – 1800 nm 600 – 1800 nm
Ref. Index Step-Index Step-Index Step-Index Step-Index
Core NA 0.22 0.22 0.22 0.22
OH Level Low Low Low Low
Mechanical
Specifications
Core Diameter 200.0 ± 4.0 μm 200.0 ± 5.0 μm 200.0 ± 5.0 μm 200.0 ± 5.0 μm
Cladding Diameter 220.0 ± 5.0 μm 220.0 ± 5.0 μm 240.0 ± 5.0 μm 220.0 ± 5.0 μm
Coating Diameter 320.0 ± 16.0 μm 250.0 ± 5.0 μm 260.0 ± 6.0 μm 255.0 ± 26.0 μm
Coating Material Acrylate Polyimide Hard Polymer Aurum(Gold)
Short Term Bend Radius 30mm 40mm 40mm 40mm
Long Term Bend Radius 70mm 100mm 100mm 100mm
Prooftest Level 100kpsi 150kpsi 130kpsi 200kpsi
Operation Temperature -40℃ – 85℃ -60℃ – 350℃ -40℃ – 150℃ -200℃ – 700℃
