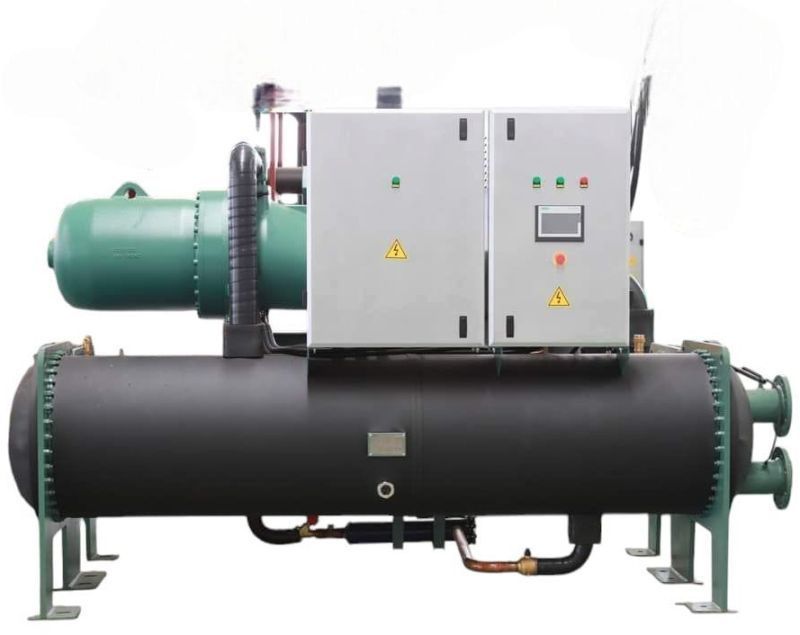

Mild Steel 200 TR Water Cooled Screw Chiller, Phase : 3

 Technical Specification – FIDEM Water Cooled Screw Chiller Sr. No. Parameter Details 1 Model FM-WCS-200-407C 2 Cooling Capacity 200 TR / 703 kW 3 Refrigeration Circuits 2 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 150 kW / 243 Amp 6 Refrigerant R407C 7 Expansion Electric Expansion Valve   Evaporator - Shell and Tube 8  Temperature  (SST) 10 °C 9 Chilled water Range 15 °C TO 20 °C                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Evaporator Circuit 2 Nos 10 Chilled water Flow 26500 LPH (ΔT ≈ 23 °C) 11 Capacity 703 KW 12 Types Shell and tube 13 Shell MOC Carbone steel (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size 6” 16 Pressure Drop 0.4Bar 17 Water side Design pressure 10Bar 18 Design Pressure (Refrigerant Side) 25Bar 19 Pump 120000 Lph @ 16.3 Meter 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 11 KW   Condenser for Water Cooled chiller 34  Temperature (SDT) +35 °C 35  Type Shell & Tube 36  Capacity 718 KW 37  Shell MOC Carbon Steel, Epoxy Coated 38  Tube MOC & Type Copper, Plain,  Bundle 39 Connection Size 6” 40 Water Flow 140000 LPH 41 Pressure Drop (Water Side) 0.4 Bar 42 Water Side Design Pressure 10Bar 43 Refrigerant Side Design Pressure 30Bar 44 Pump 140000 LPH @ 15.7 m head 45 Pump Qty / Type 1 No., Centrifugal Mono Block 46 Pump Power 11 kW, 380–415 V, 50 Hz         Compressor  58 Compressor types Compact Screw 59 Capacity Steps 100% 60 Capacity Control 25,50,75,100 Step/Stepless 61 Compressor Starter Star- Delta  (VFD- Optional) 62 Cooling Capacity 718 kW 64 Power Input
