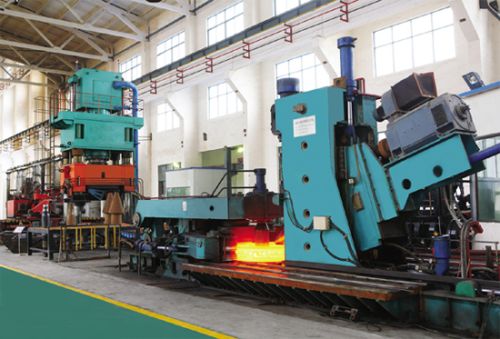

2000 Ton Hydraulic Press, Certificate : ISO9001:2000

Parameters of open forging hydraulic press
ITEM UNIT ZDYJ-2000
CAPACITY KN 20000
WORKING OIL PRESSURE MPa 25
DAYLIGHT mm 3000
STROKE mm 1600
DISTANCE BETWEEN COLUMNS CENTER mm 2950×1500
DIAMETER OF COLUMN  mm 400
DIMENSION OF SHIFTING TABLE mm 4200×1600×300
STROKE OF SHIFTING TABLE mm 2500
CAPACITY OF RETURN KN 1500
WORKING POSITIONS OF SHIFTING TABLE 3
ECCENTRICITY DIMENSION OF FORGING mm 150×100
GRADE NUMBERS OF CAPACITY 3
FIRST CAPACITY KN 7000
SECONDLY CAPACITY KN 14000
THIRDLY CAPACITY KN 21000
PRESSING SPEED AT APPROACH mm/s 300
PRESSING SPEED AT FIRST CAPACITY mm/s 195
PRESSING SPEED AT SECONDLY CAPACITY mm/s 97
PRESSING SPEED AT THIRDLY CAPACITY mm/s 65
RETURN SPEED mm/s 300
SPEED OF SHIFTING TABLE mm/s 200
ACCURACY OF SHIFTING TABLE MOVING mm ±0.5
DEGREE OF FORGING  times/m 45
CARRYING CAPACITY OF SHIFTING TABLE T 35
SHIFTING TABLE HEIGHT ABOVE FLOOR LEVEL mm 0
TOTAL POWER KW 1540
WEIGHT OF PRESS(TOTAL) T 290
OVERALL HEIGHT ABOVE FLOOR LEVEL mm 9000
