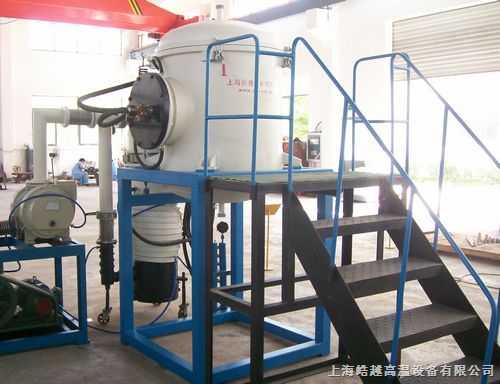

2000� Vacuum Induction Furnace

We offer �hzv 2000� vacuum induction furnace
application�
used widely for sintering of metal, powder metallurgy, ceramics, optical electrical material, stainless steel and molybdenum products under the vacuum and protective atmosphere.it is the substitute of conventional vacuum sintering furnace.
features�
the furnace is made up of the shell, cover opening and closing device, induction coils, vacuum system, and electrical system. It is convenient to install and regulate, the use of the furnace is periodic operating. It is vertical structure. Its cost is lower, saving energy, high uniformity of temperature, the advanced medium frequency technology is adopted to make the furnace. Its power is just 30% conventional carbon tube furnace. The heating comes up to 1800� within 30 minutes, temperature reduction is very fast to be 100� within 4 hours, the productivity is improved obviously, owning the intelligent japanese shimaden pid temperature controller to set 148 steps heating-up curve.
main technical parameters:
1.rated power: 100kw
2.max temperature: 2000�
3.medium-frequent voltage: 375~750v
4.medium-frequent frequency: 1500-2500hz (automatically monitoring)
5.cold ultimate vacuum: 6ã�10-3pa
6.leak rate��2pa/h
7.cooling water pressure: 0.2-0.25mpa
8.power: 380v/50hz/3 phase.
9.crucible capacity: î¦300ã�350ã��
10.nflated protective atmospheres: nitrogen, hydrogen, air-pressure can be adjusted by hand or automatically.
