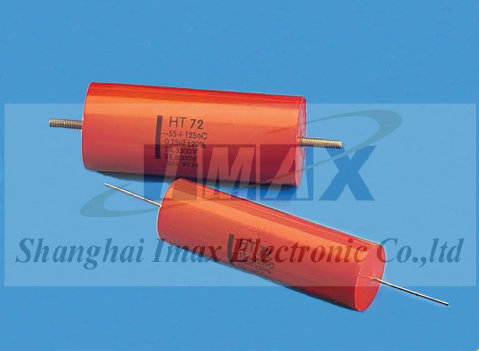

200kv 1000pf Ehv Polyester Film Capacitor

200KV 1000pf EHV Polyester Film Capacitors
Super High Voltage Polyester Film Capacitors, Super High Voltage Kraft Paper Capacitors
Introduction and Applications:
Type BAM High Voltage Capacitors are designed for filter, bypass, and coupling applications in the low audio frequency range as well as many general DC applications. Because the BAM case is non-metallic, it is the high voltage capacitor of choice at high DC voltages where a steel case and the required ceramic or porcelain stand-off would be very expensive. Housed in phenolic tubing with epoxy end seals and threaded stud terminals, BAM high voltage capacitors offer superior electrical characteristics coupled with small size. The high voltage capacitors are conservatively designed for long life under harsh conditions. Winding and case design can be customized to the conditions of use, including ambient operating environment, oil submersion, and electrical requirements (pulse discharge, AC, ripple voltage and current, etc.)
Technical Specifications
Capacitance: 500pf ~ 500uf
Rated Voltage: 5000V ~ 250KV
Dissipation Factor: 0.005
Operating Temperature: -40C ~ +85 C
Dielectric Material: Polyester Film and Kraft Paper Combination
Case Material: Plastic and Phenolic
Terminals: Axial Screws or Wire Leads (Bare or Insulated)
Rated voltage: 5000V, 10KV, 15KV, 20KV, 30KV, 40KV, 50KV, 75KV, 100KV, 150KV, 200KV, 250KV
Capacitance: 500pf, 1000pf, 3000pf, 5000pf, 10nf, 30nf, 50nf, 0.1uf, 0.3uf, 0.5uf, 1uf, 3uf, 5uf, 10uf, 30uf, 50uf, 100uf, 300uf, 500uf
5000V/100uf, 5000V/300uf, 5000V/500uf, 10KV/10uf, 10KV/30uf, 10KV/50uf, 15KV/1uf, 15KV/3uf, 15KV/5uf, 20KV/0.1uf, 20KV/0.3uf, 20KV/0.5uf, 30KV/0.01uf, 30KV/0.03uf, 30KV/0.05uf, 40KV/1000pf, 40KV/3000pf, 40KV/5000pf, 50KV/500pf, 50KV/1000pf, 50KV/3000pf, 50KV/5000pf, 75KV/500pf, 75KV/1000pf, 75KV/3000pf, 75KV/5000pf, 100KV/500pf, 100KV/1000pf, 100KV/3000pf, 100KV/5000pf, 150KV/500pf, 150KV/1000pf, 150KV/3000pf, 200KV/500pf, 200KV/1000pf, 250KV/500pf
