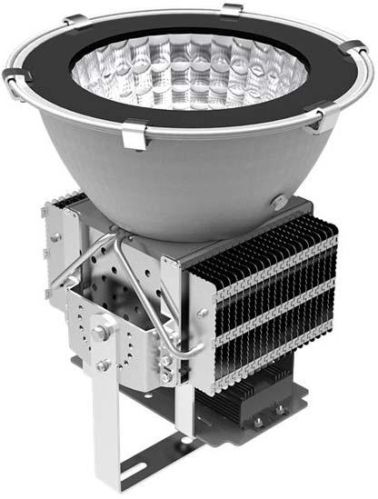

We are offering 200W LED Canopy Light. 200W LED Canopy Light is equipped with patented heatsink of ultrathin fins plus heat pipes, 130 CREE XBD LEDs and an external 200w cc power driver, which ensure light output up to 19,000 lm. 200W LED Canopy Light is light in weight and has corrosion resistant structure. The 50, 000-hour service life and IP65 protection make our 200W LED Canopy Light suitable for architecture lighting, etc.
Features :
| General | |
|---|---|
| Name | H200 – LED 200W Canopy Light |
| P/N | H200 |
| Materials | Aluminum + tempered glass |
| Electrical | |
| Power Driver | 200W external constant-current power driver |
| Power | 200W |
| Input Voltage | 90-305V |
| Input Current | 0.65-2.22A |
| PFC | >0.95 |
| Output Voltage | 42V typical |
| Output Current | 4.7A +/- 1% |
| Efficiency | 92% typical |
| Optical | |
| LEDs | Cree XBD series LEDs, 130pcs |
| Flux | 19,000lm, typical |
| CCT | 4000K / 6000K or custom |
| CRI | 70 / 80 |
| Lens | Transparent tampered glass |
| Beam Angle | 62o |
| Optical Efficacy | 90lm/W, typical |
| Physical | |
| Size | 380 x 320 x 500 mm |
| Temperature | -20-+60oC (operating), -40-+85oC(storage) |
| Weight | 10kg |
| IP Rating | IP65 |
| Standard | CE, FCC, RoHS |
| Lifespan | 50,000 hours |
| Warrantee | 5 years |
