Contact SupplierWe are offering 2015 ktm 250 sx-f.

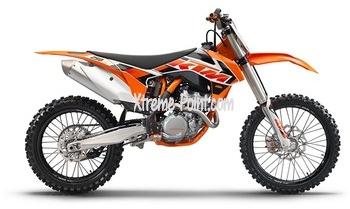

2015 ktm 250 sx-f base
year 2015
manufacturer ktm
model name 250 sx-f
trim name base
generic type (primary) off-road
engine
engine type single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
displacement 249.91 cm³ (15.2505 cu in)
bore 78 mm (3.07 in)
stroke 52.3 mm (2.059 in)
starter electric starter
transmission 6-speed, claw shifted
lubrication forced oil lubrication with 2 eaton pumps
primary drive 24:73
final drive 13:50
cooling liquid cooling system, continuous circulation of cooling liquid with water pump
clutch wet multi-disc clutch brembo hydraulics
ignition contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
chassis
frame type central tube frame made of chrome molybdenum steel tubing
fork wp suspension up side down 4860 mxma 4cs
shock absorber wp suspension 5018 bavp dcc
front travel (in.cm.) 300 mm (11.81 in)
rear travel (in.cm.) 317 mm (12.48 in)
brake system type disc brakes, brake calipers on floating bearings
brake disc diameter, front 260 mm (10.24 in)
brake disc diameter, rear 220 mm (8.66 in)
sprocket chain 520 x-ring
steering head angle: 63.5°
wheelbase 1,495±10 mm (58.86±0.39 in)
ground clearance 375 mm
seat height 992 mm (39.06 in)
capacities
fuel capacity 7.5 l unleaded premium fuel (95 ron)
weights
dry weight 102.2 kg
