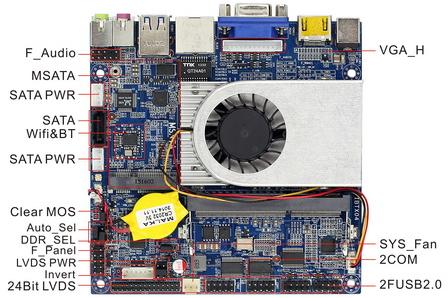

2032-3 Itx-hcms5j19 Baytrail J1900 Processor Nano Itx Motherboard

Detail Specification
CPU Intel baytrail J1900 Quad core Low consumption processor
Chipset Single chip: Intel RJ1900
Memory 1 x SODIMM DDR3 13331066MHz DIMM, Max support 8GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 101001000M lan support PXE.
Storage Interface 1 x SATA2.0
1 x SATA with Power
Expansion Slots 1x MINI PCIE slot for MSATA SSD
USB Support 6 PCS USB,1PCS USB3.0,5 PCS USB2.0 Ports (4pcs need extended)
Internal
IO Connectors 1x System FAN header
1x SATA header
1x SATA with Power
2x SATA Power header
1 x CPU fan header
1 x front panel header
1 x F_Audio header
1 x Clear CMOS Header
1 x VGA_H header
1x 24bit LVDS
1x Invert header
1x LVDS Power Jumper
2x COM headers
2x USB headers
1x Auto_SEL header
Back Panel
Connectors 1x 12V-19V DC Jack
1 x VGA port
1 xHDMI port
1 x RJ-45 port
1 x USB 2.0 port
1x USB 3.0 port
2x LINE out&MIC ports
IO Controller 1 x IT8784
BIOS AMI Authorized 32Mbit BIOS process, support RPLPXE
Form Factor 120 x 120mm
Work Environmental
Working conditional temperature -20~60°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
