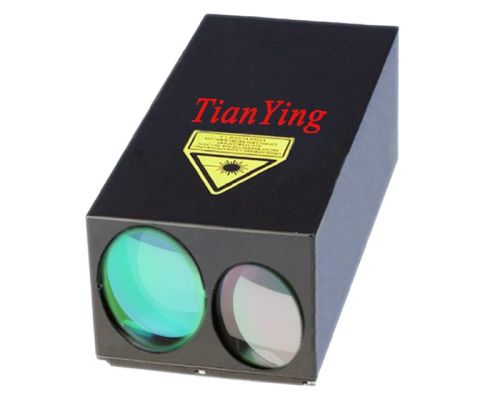

    20km(5m X 2m) Plane Max 30km~40km 5Hz 1570nm Eye Safe Laser Rangefinder
    • 20km(5m X 2m) Plane Max 30km~40km 5Hz 1570nm Eye Safe Laser Rangefinder
    • Video 1
    • 1578172
    • 1578173
    • 1578217

    20km(5m X 2m) Plane Max 30km~40km 5Hz 1570nm Eye Safe Laser Rangefinder

    ₹ 9.05 Lakh - ₹ 2.72 Cr / pc
    Get Latest Price
    • Power20 - 30V DC
    • Country of OriginChina
    • Number Of FlowerLaser Rangefinder
    • Accuracy≤ +/-1m
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All Countries Except India
    View More Details
    Send Enquiry

    Company Information

    Yiwu TianYing Optical Instrument Co., Limitedverified-icon
    location China
    View Number
    • calendar Member Since 10 Years
    • building Nature of Business Supplier
    • Year of Establishment 2007

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Country of OriginChina
    • Number Of FlowerLaser Rangefinder
    • Accuracy≤ +/-1m
    • Power20 - 30V DC
    • Ranging capability≥ 30km of building/large craft in 23.5km visibility;
    • Weight3kg with house
    • Data interfaceRS422
    • Beam divergence≤ 1 mrad, typical 0.8mrad, option 0.5mrad.
    • Size≤ 4000 cubic centimeters
    • Laser Type1570nm
    • Operation Temperature-40ºC~+70ºC
    • Pulse energy≥12mJ
    • ModelTY-LR88
    • Measuring rate(programmable)5Hz work 30 seconds and rest 30 seconds cycle at +60ºC.
    • Laser classification1M or 3R
    • Extinction Ratio>50 dB (85% reflectivity at 500m target)
