20m Insulated Copper Pipe Suitable

20m insulated copper pipe is supplied in 20m double insulated copper pipe and 20m single insulated copper pipe, both of them are used for air conditioner installation. The copper pipe inside of insulation is compatible for r410a, r407c, r404a, r507 and r22 refrigerants. The copper pipe are produced according to astm b280 standard, en 12735-1 standard, as 1571 standard. The outer insulation pipe is three layered structure and made of cross linked pe foam with closed cells. Insulation pipes are covered with embossed pe film to prevent the foam creasing. Our 20m insulated copper pipe is with rohs certificate, ce certificate and produced in iso 9001 management system.
Advantage:
1. Rohs certificate, ce certificate and iso 9001 management system assure superior quality
2. Professional copper pipe manufacturer, fast production and delivery
3.12 years copper pipe manufacturing experience, meticulous care on every order
4. Pe insulation pipe is environmental, anti-uv, with excellent heat resistance, lower water absorption
5. Company standard copper pipe especially for r410a refrigerant
specifications:
1. Alloy: c12200, cu-dhp,
2. Size range:
copper pipe outside diameter from 6.35mm to 22.23mm (from 14" to 78")
wall thickness from 0.56mm to 1.40mm
length from 3m to 30m
3. Copper pipe temper: soft annealed temper
4. Type: 20m double insulated copper pipe, 20m single insulated copper pipe

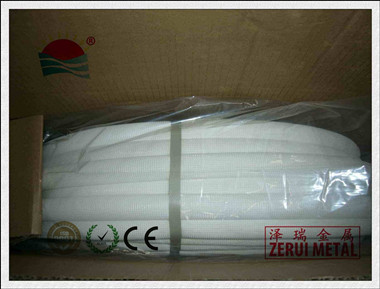

5. Packing: each end capped, individually sealed in plastic bag and then packing in strong sea worthy carton. Pallet is available upon request.
6. Our standard:
astm b280, en 12735-1, as 1571, jis h3300 standard-copper tube for air conditioning and refrigeration
7. Delivery time: 2-3 weeks
8. Payment: tt or lc sight
