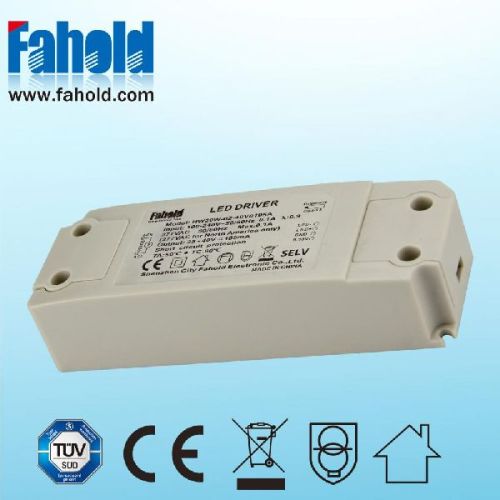

20W 500mA Flicker Free Dimmable LED Driver

20W 500mA Flicker Free Dimmable Led Driver Details   HW20W-02, Flicker free 0-10V dimmable LED Driver 500mA. This is an isolated, 20W, 0-10V dimmable LED driver design with >0.9 power factor (PF) which meets or exceeds commercial lighting PF and total harmonic distortion (THD) requirements.  It is well suited for integral LED luminaires, or ballasts, that use high-brightness LED emitters. The units are suitable for low wattage downlights,Dimmable Led Light Bulbs.  Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547. Features & Benefits · High PFC · Lightweight  · Single channel output, output current level selectable by DIP S.W. · Wide range of input voltage 100VAC ~ 240VAC · High efficiency up to 85% · Built-in active PFC function · 100% output  dimming signal input, can be used as normal power supply · Protections: Short circuit,over load, over voltage & over temperature protections · Suitable for indoor LED lighting application 0-10v led dimmer Product Specs: Output voltage:27-42V Max. Output wattage: 20W Max. Output Current: 500mA Dimensions:115x41x26 mm Efficiency:85% Flicker Free EncironmentIP Rating: indoorIP20 Max. Input voltage:240V Certificate:TUV,RCM,CE
