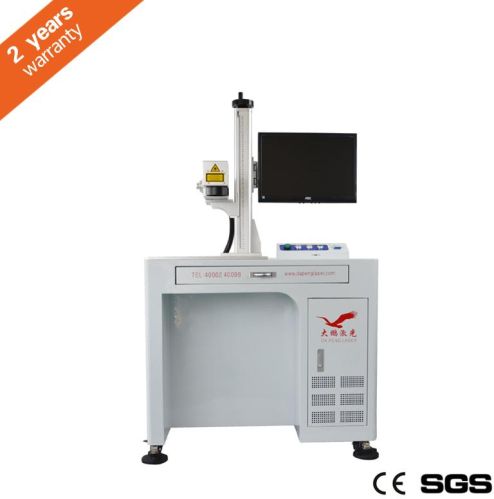

20w Fiber Laser Marking Machine With Marker

₹ 72,400 / 7630 7630 Set

MOQ1 Set(s)
Operational Temp Range10-40C
Warranty:2 years on laser source
Optional Marking Area:150mm*150mm,200mm*200mm
Unit Power0.5kw
Supply TypeManufacturer
Preferred Buyer Location China only

Company Information

Shenzhen Dapeng Laser Technology Co., Ltd

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Resetting positioning accuracy0.002
Scan HeadHigh Precision Digital Scan Head
Unit Power0.5kw
Electrical Requirements:Ac220V±10%.50HZ.10Amp
Wavelenth:1064nm
Marking Speed:7000mm/s
Optional Marking Area:150mm*150mm,200mm*200mm
Operational Humidity Range5%-75%, Non-condensing
Dimensions:820*690*1550MM
Warranty:2 years on laser source
Operational Temp Range10-40C
Standard Marking Area:100mm*100mm
Minimum Line Width0.02mm
ModelDML-F10/20/30/50
Net Weight180KG
Cooling modeAir cooled
Laser Power:10W,20W,30W,50W
Minimum letterEnglish: 0.2 x 0.2mm

We are offering 20w fiber laser marking machine with marker.
Advantages:
coast saving on power consumptionunit power only 0.6kw
no routine maintenance zero-maintenance
life time over 100,000hrs
air cooledno chiller needed
red aiming pointerno more mistakes
solid aluminum top work surface & swing arm laptop stand
portable tabletop units to automated production systems available
specifications:
model dml-f10203050
laser power: 10w,20w,30w,50w
wavelenth: 1064nm
standard marking area: 100mm*100mm
optional marking area: 150mm*150mm,200mm*200mm,300mm*300mm
marking speed: ≤7000mms
minimum line width 0.02mm
minimum letter english: 0.2 x 0.2mm
marking depth 0 ~0.5mm
location precision ≤0.01mm
resetting positioning accuracy 0.002
beam quality m2:1.2~1.8
electrical requirements: ac220v±10%.50hz.10amp
cooling mode air cooled
scan head high precision digital scan head
unit power
