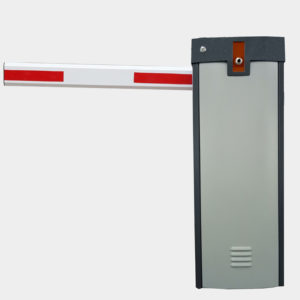

    Boom Barrier, Voltage : 220 V -/+ 10 %, 110V -/+ 10%

    • Frequency50 /60 Hz
    • Country of Origin220 V -/+ 10 %, 110V -/+ 10%
    • Availability50 – 60 kg
    • Max Boom Length6 Mtr
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 11 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2006

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Country of Origin220 V -/+ 10 %, 110V -/+ 10%
    • Frequency50 /60 Hz
    • Availability50 – 60 kg
    • Protection GradeIP 55
    • Duty Cycle100%
    • Power Consumption100 Watt
    • Model NoIDT PRO 6
    • Thermal Protection1400C
    • Humidity0 – 95%
    • Boom Weight6 kg
    • Motor Torque600 Nm
    • Motor Voltage220 V
    • Running Time6 sec
    • Working Life Cycle> 5 Million
    • ProductBoom Barrier (IDT PRO 6) 6 Mtrs
    • Boom TypeTelescopic Boom
    • Working Temperature-350C ~ 850C
    • Boom Dimension45 x 100 mm
    • Motor Current1.3 Amp
    • Max Boom Length6 Mtr

    Automatic Boom Barrier with Electro-Mechanical Motor and opening time of 6 sec suitable for Residential Societies and Industrial Parking Applications.

    Description

    FEATURES:

    1. Manual Release
    2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
    3. Adjustable Left and Right side installations.
    4. Motor cooling fan, solving the problem of heat-protection.
    5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
    6. Auto Close function.
    7. Can control by three position switch or by remote control unit , operate “UP”, ‘Down’ and ‘Stop’ .
    8. Duty Cycle 100%
    9. Support the external and internal Loop Detector (optional)
    10. Traffic Light interface.
    11. Wire control (switch signal)\ Remote control (418 Mhz)
    12. RS 485 Communication module (optional)
    13. Compatible withWiegand and RFID Readers.
    14. Die-casting aluminium alloy motor, precision and good at thermal radiating
    15. Support the infrared photocell for anti-bumping function (optional)
