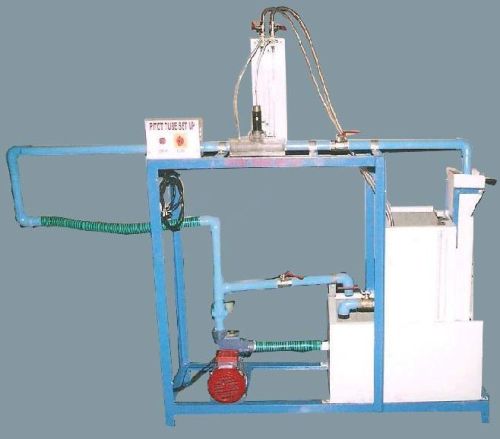

Metal Pitot Static Tube, Voltage : 220 V

We are the leading manufacturer of Pitot Static Tube which is used to measure the local velocity at a given point in the flow stress. The process of the product is also known as Pitot Static Tube Set-up. We offer the product at an affordable market price. Our powerful manufacturing unit is fully capable of producing premium quality Pitot Static Tube which we supply world wide to fulfill the requirements of our clients.
The product includes :

• A Pitot tube of standard design made of copper / SS is supplied and is fixed below vernier scale
• The Vernier scale is capable to measure the position of Pitot tube in transparent pipe section
• The pipe has a flow control valve to regulate the flow
• A U-tube manometer is provided to determine the velocity head
• Present Set-up is self-contained water re-circulating unit
• Flow control valve and by-pass valve are fitted in water line
• Flow rate of water is measured with the help of measuring tank and stop watch

Experiments :

• To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube
• To plot velocity profile across the cross section of pipe
