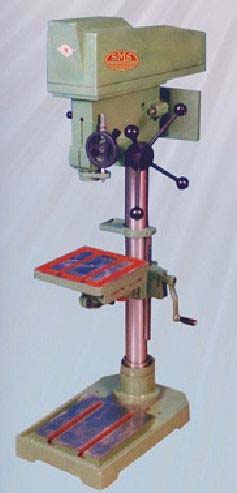

The manufacturing and testing of our 19 mm Pillar Drilling Machine are done using highly advanced techniques so as to ensure defect-free mechanism. We are one of the prominent Manufacturers, Exporters and Suppliers of Drilling Machine. Sturdy construction, high performance and longer functional life are the few words that better describe our Drilling Machine. Obtain from us, Drilling Machine at the best market price.
| Specification of Machines | Drilling Machine 19mm. |
|---|---|
| Tapping Machine Capacity | 19 mm. |
| Drilling Capacity | 19 mm. |
| Spindle Travel/Table Travel(Tapping M/C) | 125 mm. |
| Distance Spindle to column | 200 mm. |
| Distance between chuck to base | 750 mm. |
| Distance between chuck to Work table | 630 mm. |
| Size of base Plate-L x B | 430 x 280 mm. |
| Size of Work Table-L x B | 265 x 265 mm. |
| Diameter of Column | 74 mm. |
| V-Belt(Inside) | - |
| V-Belt for Motor (Outside) |
8-35 |
| No. of Spindle Speeds | 8 |
| Forwards Speeds Range | 80 to 3300 |
| Reverse Speeds Range | 80 to 3300 |
| Motor Single phase or Three phase, R.P.M. | 0.5 H.P. |
| Longitudinal & Cross Travel | 1440 R.P.M. |
| Overall Height | 1345 mm. |
| Overall Width | 450 mm. |
| Overall front to back | 500 mm. |
| Weight approx | 110 Kg. |
