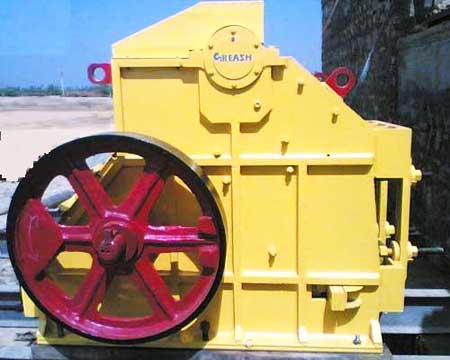

We are a well- recognized Manufacturer, Exporter and Supplier of 36 X 24 Jaw Crusher. Our Jaw Crusher is fabricated from premium components, and is tested at varied quality parameters. That's why it gives flawless performance.
| Make | Virat |
|---|---|
| Size of Crusher | 36" x 24" (900 x 600 mm) |
| Type of the Crusher | Double Toggle, Oil Lubricated |
| Material to be crushed | Crushed Stone (Screened) |
| Bulk density | 1.4 T/ M3 |
| Input lump size | - 500 mm (20") |
| Expected product size | +40mm to -80mm (25%) -40mm to +20mm (35%) -20mm to +5mm (30 to 35%) -5mm (8 to 10%) |
| Capacity | 75 TPH |
| Recommended gap setting for above product size | 60 mm (approx.) |
| Main Bearing for Eccentric Shaft | Spherical Roller |
| Hinge Bearing | Spherical Roller |
| Fly Wheel RPM | Between 300-325 rpm |
| Gap Adjustment | Steel flats of various thickness, provided to adjust the gap by stationary jaw setting. |
| Lubrication | Suitable oil lubrication system is provided. Oil tank is mounted outside the body to save costly oil during breakage of Rubber Diaphragm. Oil pump is coupled directly on the Essentric shaft. |
| Drive | Through V-Belts |
| Recommended Drive Motor | 75 HP 1440 rpm TEFC Sq.cage. |
| Weight of Machine | 20 T approx. |
| Main Body | Heavy duty, robust construction, M.S. Fabricated, Heat treatment process. |
|---|---|
| Swing / Stationery Jaw | Steel Casting (IS:1030) |
| Jaw Plates | Mn. Steel Casting (IS:276) |
| Toggles | Steel Casting (IS:1030) |
| Pitman | Steel Casting (IS:1030) |
| Shaft | Forged Steel C-45 (IS:1570) |
| Hinge Pin | Forged Steel C-45 (IS:1570) |
| Machine Pulley | Cast iron, flat type with safety Mechanism (IS:210) |
