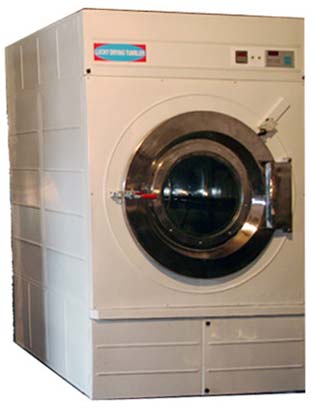

Drying Tumbler Machine, Voltage : 220V/380V

Get Latest Price

PurityStainless Steel Cylinder. Microprocessor Control. Reversible.
Country of Origin220V/380V
Total Carbohydrate1 Year
Pressure7kg/cm2
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Lucky Engineering Works

Bawana, Delhi

4.0/5

(1)

View Number

Member Since 22 Years
Nature of Business Retailer
GST No. 07AATPS9590E1ZV

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of Origin220V/380V
Total Carbohydrate1 Year
PurityStainless Steel Cylinder. Microprocessor Control. Reversible.
Height2840 mm
Clear height for tilting3400 mm
UseDrying clothers/garments/linen
Pressure7kg/cm2
Speed12 to 23 RPM
Volume4400 ltrs

We are engaged in offering Drying Tumbler Machine to the clients. The Drying Tumbler Machine is manufactured using cutting-edge technology and advanced machinery. Matching with international standards, our Drying Tumbler Machine is appreciated for its long service life and reliable performance. We offer the Front Loading, Open Pocket Industrial Drying Tumbler Machine at market leading prices to the clients.

Highlights

Stainless Steel inner basket * Double Walled glass wool insulated
Outer body duly painted Electrically interlocked loading & unloading door, *No space required on sides of the machine
Electrically Controlled protection provided for Auto Timing, & auto reversing through Micro Controlled Base Cyclic Timer/PLC, Auto Digital Temperature controls
All controls front displayed with pilot lamps
V-Belt and pulley drive for low torque and high speed
Steam radiator/Electric Heaters : Mmade out of coil and aluminum fins for steam heated, or fin type air heating elements for electrically heated machine
Centrifugally balanced suction blower mounted directly on to the motor
Electric, Steam or thermal fluid heated

Specifications

Model	Capacity Dry Wt. Per Charge	Basket Size	Drive Motor & Blower Motor	Main Door Opening	Heating				OverallDimensionsW x D x H App.	Net.Wt/ShippingWt. Shipping SizeW x D x HApp.Shipping Vol.
Model	Capacity Dry Wt. Per Charge	Volume	Drive Motor & Blower Motor	Main Door Opening	Steam Connection Consumption	Electric Load	Thermal Fluid Connection Consumption	DieselConsumption	OverallDimensionsW x D x H App.
LEW/ DT/15	15 Kg.	Ø800 x 600D	0.37 kw	500 mm	0.5" BSP 25Kg/Hr	9 KW	0.5" x 0.5" BSP10,000Kcal/Hr.	-	910 x 1190 x 1770	295 kg / 460 kg1210 x 1390 x 1970 3.31 M3
LEW/ DT/15	15 Kg.	300 Lts	0.37 kw	500 mm	0.5" BSP 25Kg/Hr	9 KW	0.5" x 0.5" BSP10,000Kcal/Hr.	-	910 x 1190 x 1770	295 kg / 460 kg1210 x 1390 x 1970 3.31 M3
LEW/ DT/30	30 Kg.	Ø950 x 850D	0.75 kw	650 mm	0.5" BSP 40Kg/Hr	18 KW	0.5" x 0.5" BSP20,000Kcal/Hr.	2.5 Lts / Hr	1060 x 1500 x 1980	565 kg / 1785 kg1260 x 1700 x 2100 4.5 M3
LEW/ DT/30	30 Kg.	602 Lts	0.75 kw	650 mm	0.5" BSP 40Kg/Hr	18 KW	0.5" x 0.5" BSP20,000Kcal/Hr.	2.5 Lts / Hr	1060 x 1500 x 1980	565 kg / 1785 kg1260 x 1700 x 2100 4.5 M3
LEW/ DT/60	60 Kg.	Ø1250 x 980D	1.5 kw	800 mm	0.5" BSP 80Kg/Hr	36 KW	1.0" x 1.0" BSP40,000Kcal/Hr.	5 Lts / Hr	1350 x 1690 x 2300	890 kg / 1190 kg 1650x 2000 x 2500 8.2 M3
LEW/ DT/60	60 Kg.	1202 Lts	1.5 kw	800 mm	0.5" BSP 80Kg/Hr	36 KW	1.0" x 1.0" BSP40,000Kcal/Hr.	5 Lts / Hr	1350 x 1690 x 2300	890 kg / 1190 kg 1650x 2000 x 2500 8.2 M3
LEW/ DT/120	120 kg	Ø1600 x 1200D	3.75 kw	1000 mm	1" BSP 150Kg/Hr	-	1.5" x 1.5" BSP80,000Kcal/Hr.	7.5 Lts / Hr	1750 x 2190 x 2750	1720 kg / 2190 kg 2050 x 2500 x 2950 15.12 M3
LEW/ DT/120	120 kg	2411 Lts	3.75 kw	1000 mm	1" BSP 150Kg/Hr	-	1.5" x 1.5" BSP80,000Kcal/Hr.	7.5 Lts / Hr	1750 x 2190 x 2750	1720 kg / 2190 kg 2050 x 2500 x 2950 15.12 M3

Note : All dimensions are in mm standard Machine Operate on 415±10%3 phase,50Hz AC Electric supply, Specifications Design mentioned above are to Subeject to Change without notice:- Machines are also made of order or per customer Equipment Specification.
