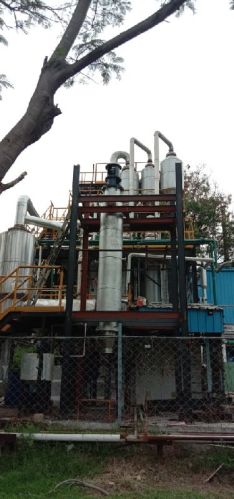

ATFD is the ideal apparatus for the continuous processing of concentrated material to dry solids. ATFD is consists of a cylindrical, vertical body with a heating jacket and a rotor inside of the shell which is equipped with rows and pendulum blades all over the length of the dryer. The hinged blades spread the wet feed product in a thin film over the heated wall.
Â
The turbulence increases as the product pass through the clearance before entering calming zone situated behind the blades as the heat will transfer from the jacket to the main shell under the smooth agitation water/solvent will evaporate and liquid will convert to a slurry, to cake or to dry powder or flex
| Atfd Selection Criteria Area (M2) | Diameter(Mm) | Total Heightr(Mm) |
|---|---|---|
| 3 | 400 | 3800 |
| 5 | 500 | 4750 |
| 10 | 710 | 6300 |
| 15 | 900 | 7700 |
| 20 | 1000 | 8300 |
| 25 | 1150 | 9100 |
| 30 | 1250 | 9700 |
| 40 | 1550 | 10750 |
| 50 | 1700 | 11550 |
