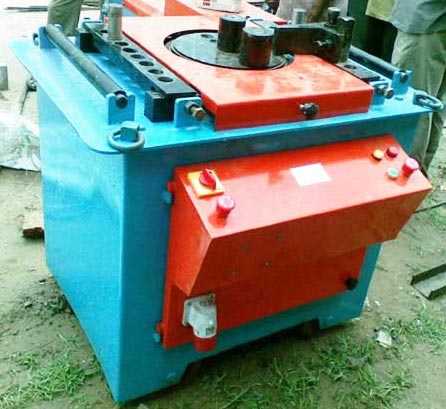

Bar Bending & Cutting Machine, Certification : CE Certified

Automatic GradeSemi Automatic
CertificationCE Certified
Power1-3kw, 3-5kw, 5-7kw
Number Of FlowerBar Cutting Machine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of FlowerBar Cutting Machine
CertificationCE Certified
Availability100-1000kg
Country of Origin220V
Automatic GradeSemi Automatic
Power1-3kw, 3-5kw, 5-7kw
ApplicationTmt Bar Cutting
Driven TypeElectric
Warrenty5years

We are a well-reckoned Bar Bending & Cutting Machine Manufacturer, Exporter, and Supplier, located in Delhi (India). The Bar Bending & Cutting Machine, we provide, is known for its superb quality and unsurpassed performance. Also, the Bar Bending & Cutting Machine is cost effective in nature and thus is highly demanded amidst the clients.

Salient features

Capable of performing many operations such as cutting, bending, making stirrups, spirals
Gears on bearings
Continuous lubrication in bending and main friction points
Parts of the machine are made of hard alloy steel
Assured safety in its operation
Simultaneous working of the bending disc and the shear arm, by pedal
In spite of removing the pins of the bending disc, the sheers constantly runs
Emergency stop buttons
In case of misuse automatic emergency return
Easy handing and high yield

Different weight available

400 kg
450 kg
500 kg

Specifications

Model Combinations	Tensile Strength	Cutting (No. of Bars)			Bending (No. of Bars)			RPM	Motor	App. Weight	App. Dimension (in cm)
		1	2	3	1	2
RBC-26/32	45 kg/sq. mm	23	20	16	32	20	2	11	3 H.P.	400 kg	88 x 105 x 90
	85 kg/sq. mm	20	14	11	26	28	16
RBC-32/36	45 kg/sq. mm	32	25	20	36	28	24	10	5 H.P.	450 kg	90 x 105 x 90
	85 kg/sq. mm	25	18	14	28	22	16
RBC-38/45	45 kg/sq. mm	38	25	22	45	30	25	10	5 H.P./ 7.5 H.P.	500 kg	90 x 100 x 92
	85 kg/sq. mm	32	22	18	36	25	20
