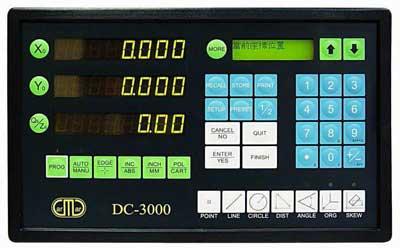

Digital Readout System (DC-3000 Series), Feature : Easy Insatallation, Easy To Use, Voltage : 220V

Listing ID #1280864

Get Latest Price

Weight1-2kg
FeatureEasy Insatallation, Easy To Use
Voltage220V
Driven TypeElectric
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Weight 1-2kg
Feature Easy Insatallation, Easy To Use
Voltage 220V
Driven Type Electric
Warranty 1year
Power Consumption 1-10kw

We offer Digital Readout System (DC-3000 Series), which shows excellent efficiency for 2D data processing. Perfect for measuring system with digital linear scales and video, the Digital Readout System (DC-3000 Series) can be easily connected to optical comparator, measuring microscope, video measuring system and other equipment for accurate readouts.

Details

Hardware Specifications	Input voltage : AC 90V - 240V Power consumption : Max. 15W Dimension : 295mm x 185mm x 68mm Weight : 1.49 kg Linear scale signals : Orthogonal TTL square wave, frequency 2 MHZ, Current : 1mA Settable resolution : 0.1m 0.2m 0.5m 1m 2m 5m 10m
Software Functions	Conveniently axis skew and coordinate shift Quick data retrieval by foot-switch and edge detector Print out user program, graphic elements and displayed three-axis coordinates Transfer current linear scale positions to PC by RS232 Graphic Element Storage: 100 permanent and 10 temporary Record the measuring steps and the measure the same work pieces in batch quantity Various coordinates displaying ways: Polar ,Cartesian, INC and ABS coordinates in Metric units or Imperial units Measure, preset and construct the graphic elements such as Point Line Circle Angle Distance Rectangle Thread and so on Correction For: Linear error and segmental linear error Connect with linear scale or rotary encoder with Z-axis

Hardware Specifications

Input voltage : AC 90V - 240V
Power consumption : Max. 15W
Dimension : 295mm x 185mm x 68mm
Weight : 1.49 kg
Linear scale signals : Orthogonal TTL square wave, frequency 2 MHZ,
Current : 1mA
Settable resolution : 0.1m 0.2m 0.5m 1m 2m 5m 10m

Software Functions

Conveniently axis skew and coordinate shift
Quick data retrieval by foot-switch and edge detector
Print out user program, graphic elements and displayed three-axis coordinates
Transfer current linear scale positions to PC by RS232
Graphic Element Storage: 100 permanent and 10 temporary
Record the measuring steps and the measure the same work pieces in batch quantity
Various coordinates displaying ways: Polar ,Cartesian, INC and ABS coordinates in Metric units or Imperial units
Measure, preset and construct the graphic elements such as
- Point
- Line
- Circle
- Angle
- Distance
- Rectangle
- Thread and so on
Correction For: Linear error and segmental linear error
Connect with linear scale or rotary encoder with Z-axis
