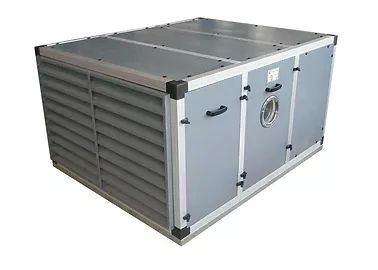

Fresh Air and Exhaust Ventilation Unit, For Offices, Restaurants, Multiplexes, Pharmaceuticals, Industries

Sagar Air SACFT series are capable of exhaust and supply air units that can handle very high CFMs. The units consist of a blower with a filtration system encased in a PUF paneled aluminum box section.

Air Discharges:

• Can Handle very high CFMs up to and above 1,00,000 CFM.

Static Pressures:

• The Units can be designed to overcome statics upto 1500 Pa

Different Filteration requirements:

• From 20 microns to 0.03 microns

Construction:

• Rigid Aluminium Extruded Profile Construction
• Double Skin PUF Insulated 24 mm Panel
• GI Casing

Fan Section:

• AMCA Certified BC/FC/Aerofoil/Plug Fans can be offered
• TEFC Electric Motor IP55 Type with Class F insulation.

Filter Section:

• Prefilters
• Bag Filters
• Fine Filters
• HEPA Filters
• Odour Filters

Safety Accessories:

• Limit Switches and Lamps as standard

Benefits Offered :

• Modular and Durable Construction- Available in Double Skin / Single Skin
• Double Skin PUF Insulated panels mounted on a pentapost aluminium frame
• AMCA Certified Fans - EC/PLUG/BC/FC Fans for superior performance and high energy efficiency
• Easy Accessibility and Maintenance
• Epoxy Powder coated / Pre-Painted Finish
• VFD Integration available as an option
• One Year Manufacturer's Warranty
