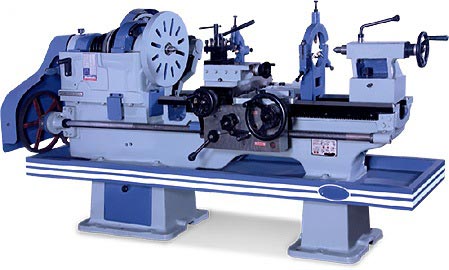

The high performer Heavy Duty lathe Machine is compromised of finest quality components that enhance its performance and service life. Our Heavy Duty lathe Machine contains various accessories such as centre adaptor, gear set, dial indicator and many others that make the work efficient and effective. The Heavy Duty lathe Machine, offered by us, is known for its excellent capacity to drill, sand, turn, or face the object.
Standard Accessories
Optional Accessories
| Particulars | Unit | HD - 1 | HD - 2 | HD - 3 | HD - 4 | HD - 5 | HD - 6 |
|---|---|---|---|---|---|---|---|
| Bed Length | Feet | 5.6 | 7 | 9 | 10 | 12 | 14 |
| Admit Between Center | Mm | 550 | 1000 | 1550 | 1930 | 2400 | 3000 |
| Bed Width | Mm | 323 | 323 | 323 | 323 | 375 | 375 |
| Height of Center | Mm/Inch | 254/10” | 254/10” | 254/10” | 304/12” | 304/12” | 304/12” |
| Swing over bed | Mm | 490 | 490 | 490 | 596 | 736 | 736 |
| Swing over cross slide | Mm | 290 | 290 | 290 | 393 | 533 | 533 |
| Spindle Bore | Mm | 52 | 52 | 52 | 80 | 105 | 105 |
| Lead Screw TPI | 4 TPI | 4 TPI | 4 TPI | 4 TPI | 4 TPI | 4 TPI | |
| Tail Stock Sleeve | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | |
| Main Motor | HP | 2 HP | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP |
