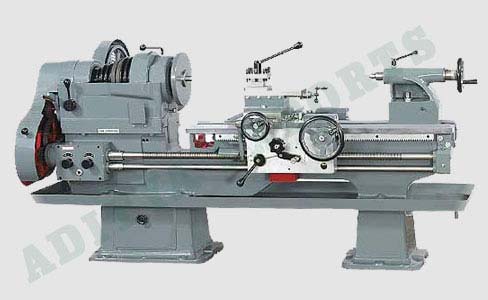

Customers can contact us for obtaining superior grade heavy-duty-lathe-machine at the most competitive prices. Acquiring our premium and high-grade range of product is hassle free as our organization is located in Batala(India), which is easily accessible by road, rail, and air. Refer Below link for specifications http://adityaexport.com/lathe-machine.html
| Height of centre | 254 mm |
|---|---|
| Swing over slide | 280 mm |
| Swing over bed | 450 mm |
| Swing in gap | 760 mm |
| Admit between centre | 1000 mm |
| Length of bed | 2130 mm |
| Width of bed | 325 mm |
| Hole through the spindle | 50 mm |
| Taper bore in spindle | M.T. - 6 |
| Spindle nose | 6 T.P.I. |
| Range of spindle speeds | 30 to 500 R.P.M. |
| Spindle speeds | 8 |
| Taper born in sleeve | M.T. - 3 |
|---|---|
| Sleeve Travel | 125 mm |
| Sleeve Dia | 38 mm |
| Metric Threads | 1 to 6 mm |
| Inches Threads | 2 to 24 T.P.I. |
| Face Plate | Chuck Plate |
|---|---|
| Steady Rest | Follow Rest |
| Motor Pulley | Change Gear - B.S.W. - 13 |
| Change Gear – M.M. – 3 | Dead Centres – 2 Nos. |
| Centre Adopter | Tools Post Key |
