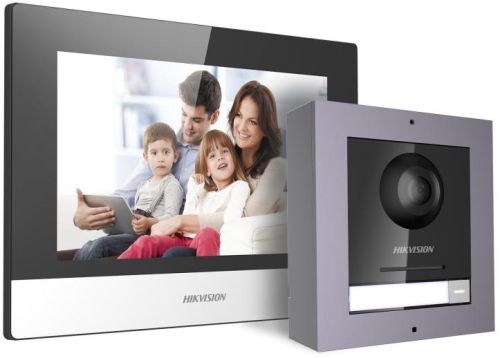

Hikvision Video Door Phone, Voltage : 220V

Video Intercom KIT

IP video intercom kit for villa or house, only one call button

DS-KD8003-IME1/Surface x1

DS-KH6320-WTE1 x1

4 port standard PoE switch x1

16GB TF card x1

European power supply adaptor included (please mark for other standards when you order)

Available models:

DS-KIS602

System Parameters

ProcessorEmbedded MCU Processor

Operation SystemEmbedded Linux Operation System

Display Parameters

Display Resolution1024 × 600

Display Screen7-inch colorful TFT screen

Audio Parameters

Audio Compression Rate64 Kbps

Audio Compression StandardG.711 U

Audio InputBuilt-in omnidirectional microphone

Audio OutputBuilt-in loudspeaker

Audio QualityNoise suppression and echo cancellation

Network Parameters

Ethernet10/100 Mbps Self-Adaptive Ethernet

Network ProtocolTCP/IP, RTSP

Device Interfaces

I/O Input4

I/O Output2

General

Power Supply12 VDC/PoE ( IEEE 802.3af)

Power Consumption≤10 W

Working Temperature-40° C to +60° C (-40° F to 140° F)

Working Humidity10% to 95%

Dimension (L X W X D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

Weight

683 g (with packaging)

355 g (without packaging)

IP Protection LevelIP65

Memory128 MB

Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
