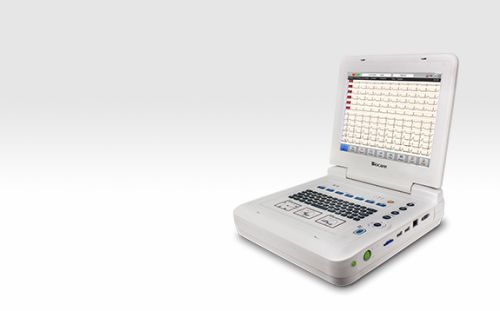

IE 15 Digital 15-Channel ECG, Certificate : CE Certified, Voltage : 220V

Listing ID #2680195

Biocare is the first ECG manufacturer in China to launch the 15-channel ECG in 2010. Under the challenging endeavors of Biocare's R&D team, iE15, with the state-of-art technology, our second generation 15-channel ECG, has made great improvement in diagnostic program and workflow design. It can deliver high-quality clinical performance where and when you need it, which can help you simplify cardiac patient care.

Innovative Acquisition Module

• Advanced 24-bit A/D converter technology, better in weak Signal detection.
• Complete filtering technology against AC, EMG interference and baseline wandering
• Individual lead wires can be exchanged
• 12-lead, 15-lead and vector cardiograph, all ln one module.
• 3 operation keys for efficiency improvement and time-saving.

Streamlined workflow from start to finish

• 1:1 actual size background grid line, provides preliminary screening without printout.
• Background grid line, provides preliminary screening without printout.
• Icon buttons on the screen for intuitive operation.
• 7 working modes: auto, manual, rhythm, trigger, economic, upload, cycle.
• 18 report formats for printing.

Ergonomic notebook design

• 12.1-inch high resolution color LCD with touch screen, clear and easy-to-read.
• Full alphanumeric keyboard and shortcut keys, simplifies and speeds the operation.
• Built-in rechargeable lithium battery for up to 2.5 hours of continuous work.
• Peripheral ports : VGA, USB, LAN, SD card.

Data management solution

• Internal memory can be 1500 files.
• Support SD card and USB flash disk.
• Upload data to ECG management software (optional).

Qualified clinical excellence in diagnosis

Biocare's CardioPro^TM ECG analysis program has been proven by official CSE database evaluation with high accuracy and reliability in measurement and interpretation.

15-lead ECG

• The 15-lead ECG aids in detection of ECG changes of ischemia which are difficult to detect with standard ECG.
• The extra leads combinations for different clinical needs.
• Separate 15-lead ECG mode for adults and pediatrics by "one-touch".

Vector cardiograph

• VCG and vector loop for more advantages in diagnosis of  the Right Atrium & Ventricular Hypertrophy, Conduction Block, Myocardial Infarction and so on.

Analysis for children and newborns

• Frequency response as 0.05 Hz ~ 250Hz, more sensitive in weaker ECG signal detection and better in ECG interpretation for children and newborns.

Arrhythmia detection

• Auto-trigger printing when arrhythmia is detected under trigger mode.
• Extending printing prompt.

R-R analysis

• Up to 300 seconds R-R analysis in 1 or 3 rhythm leads for  easier in arrhythmia locating.

Freeze function

• Up to 300 seconds of uninterrupted 12-lead frozen waveforms for intermittent arrhythmia analysis.

Cabrera lead mode

• Cabrera mode available to orientate the original position of  Myocardial Ischemia or Arrhythmia.

Pacemaker detection

• Detect accurately the presence of pacemaker pulses and reduce the treatment contraindicated for paced patients.

Other Important Features

• Compact and elegant notebook design
• 12.1-inch high resolution TFT LCD with touch screen, easy to view
• Full alphanumeric keyboard with shortcut keys, efficient in operation
• Broad frequency response 0.05~250Hz for weaker signal recognition and capture, more suitable for pediatrics
• 15-lead ECG for adults and pediatrics, Vector cardiograph, 12-lead ECG, all-in-one
• VCG and vector loop for more advantages in diagnosis of the right atrium & ventricular hypertrophy, conduction block, myocardial infarction and so on
• New generation acquisition module, more quickly, stable and accurate in ECG signal process
• New filtering technology effectively guarantees waveforms against AC interference, wandering and overlapping
• Massive local storage for up to 1500 files
• Exclusive Biocare CardioProTM ECG analysis program
• Apply the latest Minnesota code
• 7 working modes catering for clinical demands
• 18 report formats on printing
• 3 ways of file storage: local memory, SD card, USB flash disk
• ECG management software (optional)
