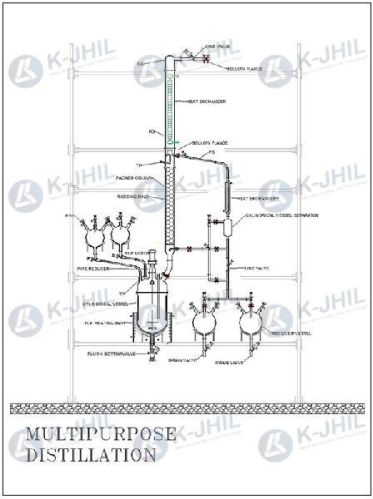

Electric Multi Purpose Distillation Unit, Certification : CE Certified

We are one of the trusted companies in India, which is manufacturer and exporter of Multi Purpose Distillation Unit. The system we provide is based on latest technology, which is mechanically designed and tested by our engineers so that it can give the best of its performance. Our system is fully customized to meet our client’s requirement.
K-JHIL’s Multi Purpose Distillation Unit can be used for separation of Azeotropic mixture using distillation methods such as Extractive distillation, Heterogeneous Azeotropic distillation, Distillation using ionic salts, Pressure-swing distillation, Reactive distillation and many other processes.
Features :

• Compact multipurpose process pilot plant for R & D. Pharma, Fine chemicals.
• Heating and cooling system for Reactors.Max temp.200c.-
• Design for Distillation, Reaction, Absorption, Rectification and Extraction.
• Glass equipment’s Column available from 15mm to 450mm.
• Heat treatment annealed glass components.
• Heat Exchanger, Coil type, All Glass Shell & Tube Heat Exchanger.
• PTFE Agitator stirred assembly with magnetic coupling design according to your application.
• Explosion Proof 3 Phase Geared Motor with speed control Variable Frequency Drive.
• Unit working under high vacuum 1m bar.
• Available 2Ltr to 100ltr.
• Supporting Frame available in SS 304/316 with tubes and coupling, Nut bolts.
• Maximum Working Temperature 200°C.
