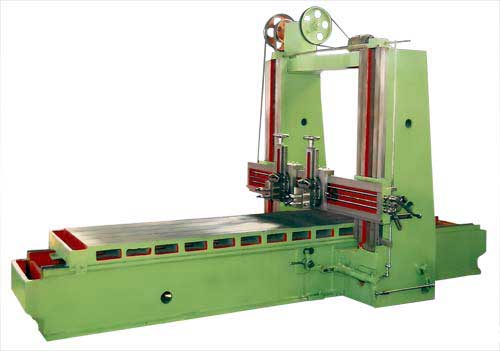

Contact SupplierWe are renowned as one of the prime Planner Machine Exporters from Batala. Customers from all round the globe are placing repeated orders for the Planner Machines due to the unmatched quality and unsurpassable performance. The materials used in the manufacturing of the Heavy Duty Planner Machines ensure high durability, tensile strength and resistivity to adverse conditions. Moreover, easy operation, less input requirements, high output and low maintenance cost are some of the factors that distinguish our Planner Machines from others available in the market.
Salient Features :
The bed of planner machine is of deep box section type and is tied together at frequent intervals by double walled bridge pieces extending to the bottom of the bed.
Size |
ft. mm |
8' 2438 |
10' 3048 |
12' 3657 |
14' 4267 |
16' 4876 |
18' 5486 |
20' 6096 |
22' 6705 |
24' 7315 |
26' 7925 |
28' 8535 |
30' 9144 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Length of Bed V'S |
ft. mm |
12' 3657 |
15' 4572 |
18' 5486 |
21' 6400 |
24' 7315 |
27' 8229 |
30' 9144 |
33' 10059 |
36' 10973 |
39' 11887 |
42' 12802 |
45' 13716 |
Length of bed all over |
ft. mm |
13 3962 |
16 4877 |
19 5791 |
22 6705 |
25 7620 |
28 8534 |
31 9449 |
34 10364 |
37 11278 |
40 12192 |
43 13107 |
46 14021 |
Stroke of table |
ft. mm |
8 2428 |
10 3048 |
12 3657 |
14 4267 |
16 4876 |
18 5486 |
20 6096 |
24 7315 |
26 7925 |
28 8535 |
30 9122 |
--- |
Length of table all over |
ft. mm |
9 2743 |
11 3553 |
13 3962 |
15 4572 |
17 5181 |
19 5791 |
21 6401 |
23 7010 |
25 7620 |
27 8230 |
29 8840 |
31 9449 |
Thickness of Table |
ft. mm |
7-1/2 190 |
7-1/2 190 |
7-1/2 190 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
Planing Width |
ft. mm |
4 1219 |
4-1/2 1371 |
5 1524 |
5-1/2 1676 |
6-1/4 1905 |
6-1/4 1905 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
Height under cross rail |
ft. mm |
40 1219 |
4-1/2 1371 |
4-1/2 1371 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
Cutting Speed P.M |
ft. mm |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
Return Speed P.M |
ft. mm |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
Method of driving planer |
Belt driven |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
Method of driving table |
Rack & Pinion |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
