SIAT SM48 Automatic Carton Sealer, For Industrial Use, Voltage : 220V

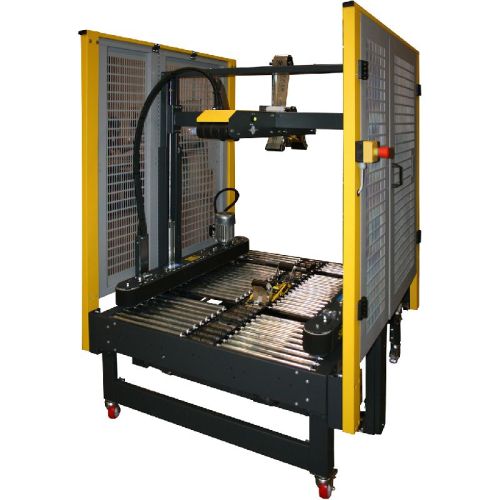

SM48 is a automatic sealing machines with random adjustment. It means that these machines are able to adjust themselves on the different box dimensions. Thanks to the top and bottom drive belts and the K12R taping unit, they allow the perfect sealing of the box.

Machines adjustments and use are intuitive, simple and fast.

On the SM48 version the rest position of the top taping unit is DOWN: the feeding of boxes is performed manually by an operator. On the SM481 version the rest position of the top taping unit is UP: thanks to some particular devices the feeding of boxes is performed automatically.

Key Features

• Automatic adjustment on different box sizes
• Side lower drive belts (2 x /% mm width each)
• Drive belts speed 20 m/min.
• 2 x Motors kW 0,13 each
• 2 x K12R taping unit - 75 mm width
• Extruded aluminium telescopic legs with millimetric guide
• Locked stop emergency button
• On/Off magneto-thermic switch
• Adjustable descending height stopper of the top taping unit to increase speed rate
• Top head pneumatic pressure regulators
• Safety protections with switches to disconnect electric & pneumatic circuits if opened
• Adjustable working height 500 - 750 mm
