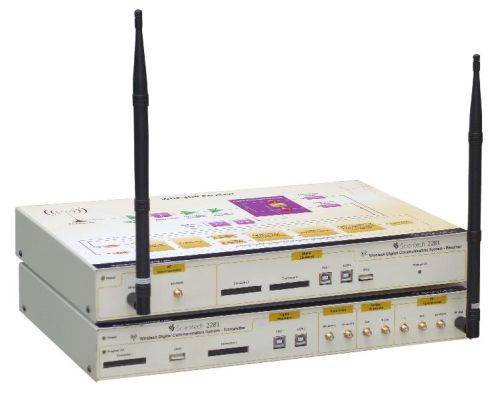

Electric Wireless Digital Communication System, For Satellite Use, Voltage : 220V

Wireless Communication is fundamentally the art of communicating information without wires. In principle, wireless communication encompasses any number of techniques including underwater acoustic communication, semaphores, smoke signals, radio communication, and satellite communication, among others.

Details :

• Thus the spotlight of this solution will focus on digital wireless communication. Every major wireless system being developed and deployed is built around digital communication including cellular communication, wireless local area networking, personal area networking, and high-definition television. This class is unique because it approaches wireless communication from the perspective of digital signal processing (DSP). No background in digital communication is assumed, though it would be helpful.
• Scientech Wireless Digital Communication System is an practical approach to wireless digital communication. This approach makes wireless more concrete, avoids simply drowning in mathematics and useful for graduate students as well. Students build a practical foundation for further study and good preparation for industry.

Features :

• Portable design
• Block level study and implementation
• Supported Communication Links: - Wired, Wireless and Optical (optional
• Built-in simulation & real time software
• More than 20 built-in labs
• Internal & External data mode
• Baseband signal analysis of I & Q channel
• Dual 125 MSPS 10-bit D/A converters for I Channel and Q Channel
• Control setting for individual blocks
• Built-in RF-up converter
• Built-in RF-down converter
• User programmable
• Provision for external reference signal for PLL
• SMA connectors
• Built-in analog signal acquisition
• Logic Analyzer for digital signal analysis
• Constellation view for I & Q
• Study of impairments
• Digital Filters: Interpolation, Decimation and Raised Root Cosine with variable roll-off(?)
• Various Spreading codes
• Built-in low-noise frequency synthesizer
• Variable chip rate up to 10 Mchips/s
• JTAG USB connector for FPGA configuration
• USB2.0 interface
