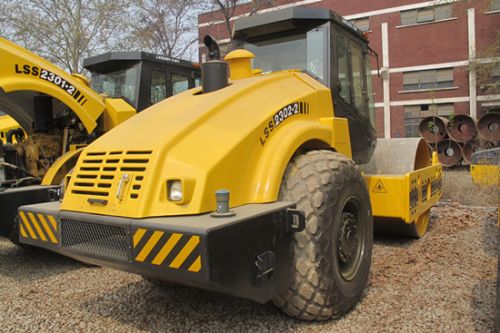

23 Tons Single Drum Vibratory Road Levelling Machine

We are offering 23 tons single drum vibratory road levelling machine lss2302-2 main features:
 dual amplitude setting of vibration. New types of vibration device and drum travel bearing structure. Heavy duty gearbox. Driving axle with greater braking torque.
 joint-moving mechanism of the clutch pedal with engine throttle. Adjustable instrument desk with liquid crystal instrument panel.
 mp3 supported music system with usb and sd interface. Modernized style overall appearance. Driver’s cabin with t type angular glasses.
 guo il emission standard engine. Engine cooling air-path structure and large capacity of fuel tank.
 one handle controlled pneumatic shift control mechanism, parking brake by cutting air, safety and reliability.
23 tons single drum vibratory road levelling machine lss2302-2 main performance parameters:
model ls2302-2
operating mass kg 23000
static linear load ncm 529
vibration amplitude mm 2.01.0
vibration frequency hz 2835
centrifugal force kn 380300
max. Travel speed kmh 10.5
grade ability % 35
min. Turning radius mm 7500
drum width mm 2130
drum diameter mm 1600
wheelbase mm 3530
min. Ground clearance mm 445
engine model sc8d180
engine power kw 132
overall dimensions mm 6800×2300×3000
since the product is improved continuously. The specification and instruction are subject to change without separate notice.
