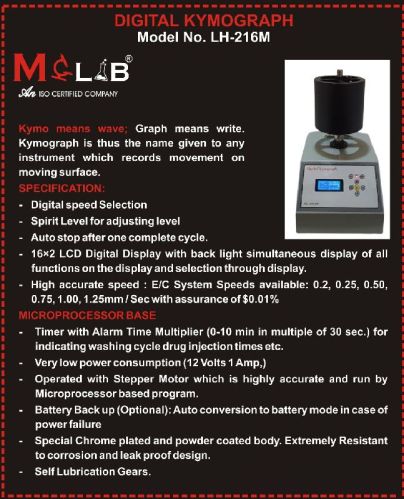

Digital Kymograph, Voltage : 230 V

Kymo means wave:- Graph means write. Kymograph thus the name given to any  instrument which records movement on moving surface.

SPECIFICATION:

• Digital speed Selection
• Spirit Level for adjusting level II lop I
• Auto stop after one complete cycle.
• 16x2 LCD Digital Display with back light simultaneous display of all functions on the display and selection through display.
• High accurate speed : E/C System Speeds available: 0.2, 0.25, 0.50, 0.75, 1.00, 1.25mm / Sec with assurance of $0.01 %

MICROPROCESSOR BASE

• Timer with Alarm Time Multiplier (0-10 min in multiple of 30 sec.) for indicating washing cycle drug injection times etc.

• Very low power consumption (12 Volts 1 Amp,)

• Operated with Stepper Motor which is highly accurate and run by Microprocessor based program.

• Battery Back up (Optional): Auto conversion to battery mode in case of power failure

• Special Chrome plated and powder coated body. Extremely Resistant to corrosion and leak proof design.

• Self Lubrication Gears.
