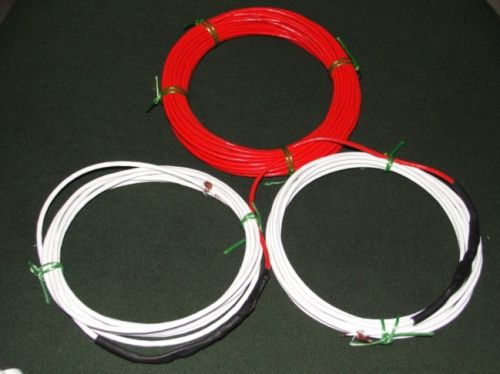

Single Conductor Screened Heating Cable, Voltage : 230V

MOQ500 Meter
ApplicationUnderfloor or Undertile heating etc.
Country of Origin230V
Watt Per Mtr.8W/M to 30W/M
Outer Diameter of CableApprox. 2.20mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Country of Origin230V
ApplicationUnderfloor or Undertile heating etc.
Watt Per Mtr.8W/M to 30W/M
Wattage150W to 3000W
Cable PropertiesSingle conductor Screened
PackingLong Length or Pre Cut Lengths in coils or reels
Tolerance Ohmic range- 5% to +10%
Outer Jacket InsulationPTFE, FEP, ETFE or PVC as required
ScreeningBare Copper Braid
Outer Diameter of CableApprox. 2.20mm
Inner Conductor InsulationPTFE
Cold Tail Length2 X 3M PTFE

Our Single Conductor Screened Heating wires are thin and made by multistrand as well as single solid strand conductor depending on Ohmic Value. Nominal Outer Diameter of Single Conductor Insulated Screened Heating cable is only approx. 2.20mm thick.
These cables are manufactured by high quality resistance wires with PTFE Tape wrapping and fusion method. Due to PTFE insulation our cables withstand -60°C to +260°C continuously. These cables are Bare Copper braided which provide them maximum safety, toughness and mechanical strength which make them able to install in Rooms, Bathrooms, Kitchens.
We are supplying Heating cables in long lengths or pre-cut lengths with or without cold tail attached as per customer need.
