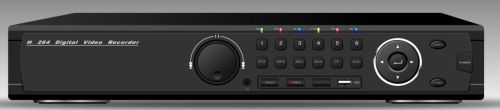

24 CH H. 264 CIF Enhancement DVR (D8224)

DVR (D8224)
Features:
1>H. 264 standard compression format with efficient processing and clear image
2>4CH DVR supports 1D1+3CIF real time recording / 8CH DVR supports 2D1+6CIF or 8HalfD1 real time recording / 16CH DVR supports 2D1+14CIF real time recording
3>Two high-speed USB2.0 interfaces, you can mix backup and mouse
4>Support six operations at the same time, recording, playback, network transmission, backup, mobile monitoring, PTZ control etc.
5>Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any domain names, plug and play
6>Dedicated high-reliability file system for special monitoring
7>Simplified Chinese, English, Thai, Russian, French, Spanish etc. Over twenty languages
8>A powerful mobile control and monitoring features to support Window Mobile, Symbian, Android, iPhone and Blackberry etc.
Model D8204 D8208 D8216 D8224
System Main Processor High performance embedded microprocessor
System Resource Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network
CIF/Half-D1/D1
CIF/Half-D1/D1
Video Input 4×BNC,(1.0Vp-p,75Ω)
4CH,BNC,(1.0Vp-p,75Ω) 8×BNC,(1.0Vp-p,75Ω) 16×BNC,(1.0Vp-p,75Ω) 24×BNC,(1.0Vp-p,75Ω)
Standard NTSC 120F/S,PAL100F/S
NTSC 240F/S,PAL200F/S NTSC 240F/S,PAL200F/S NTSC 480F/S,PAL400F/S NTSC 720F/S,PAL600F/S
Output 1×BNC,(1.0Vp-p,75Ω),1×HDMI
Audio Input 4×RCA
4CH,BNC(200-2800mv, 30kΩ) 8×RCA 16×RCA 12×RCA
Output 1×RCA
1CH, BNC(200-3000mv, 5kΩ) 1×RCA 1×RCA 1×RCA
Display Display Split 1/4
1/4 1/4/8/9 1/4/8/9/16 1/4/8/9/16/24
Resolution VGA:1280*1024, 1024*768, 800*600 HDMI: Maximum is 1080P
Tour Display Support
Recording OSD Camera title, Time, Video loss, Motion detection, Recording
Video/Audio-compression Standard H.264/ADPCM
Image Resolution D1(720*576/720*480), HD1(720*288/720*240), CIF(352*288/352*240)
Encoding
Stream Main
120FPS(D1) 240FPS(D1) 480FPS(D1) 600FPS(D1)
Extra 60FPS(CIF) 120FPS(CIF) 240FPS(CIF) 240FPS(CIF)
Recording Mode Manual, schedule(regular continuous), MD(Video detection: , Alarm)Stop
Recording Priority Manual>Alarm>Motion detection
Recording Interval 5-120mins(default:60mins)
Video detection & Alarm Trigger events Recording, PTZ movement, Alarm, E-mail
Motion detection Zones:396(22*18),Sensitivity:1-5(Level 5 is the highest)
Video loss Support
Alarm input/output 4CH input/2CH output
4CH input/1CH output 8CH input/2CH output 16CH input/2CH output 16CH input/2CH output
Playback & Backup Playback channel 4CH
4CH 8CH 16CH 24CH
Playback speed 60FPS(D1) 240FPS(D1) 480FPS(D1) 120FPS(D1)
Search mode Time/date, Alarm, Motion detection
Playback function Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording files can be viewed by dragging the progress bar back and forth
Backup mode U-disk/Hard disk/USB CD/DVD-RW/Download
Network Physical interface RJ-45port(10/100M)
Network function TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS,DNS Binding
Remote operation Monitor, PTZ control, Playback, System setting, files download, Log information
Mobile monitoring Support Window Mobile, Symbian, Android, iPhone, Blackberry etc.
Hard Disk Hard disk 8 SATA port, the capacity of single hard disk has no limit
Space occupation Audio: 14.4MB/H, Video: 56-900MB/H
HDD management
Hard disk hibernation technology, HDD faulty alarm, file restoration
Auxiliary Interface USB Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk
RS485 Two PTZ control
Talkback Talkback function RCA input / output talkback port, support voice talkback function
Environment Power supply AC 100-240V,50/60Hz (ATX power)
Working environment -10ºC~+55ºC/10~90%RH/86~106KPa
Dimension 440*450*90mm(2U)(Product size)
Weight 9.0 kg(W/O HDD)
