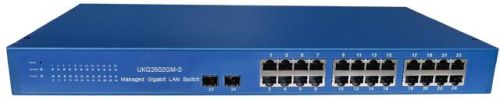

24 Electric+2 Optic Managed Gigabit LAN Switch Ukg2602gm-s

We offer 24 Electric+2 Optic Managed Gigabit LAN Switch UKG2602GM-S is a L2/L4 Gigabit managed switch with 2410/100M/1000M RJ45 electrical ports and 2 SFP optical ports. The hardware supports wire-speed switching of the second layer. Users can set the various functions of switches through the Ethernet port by WEB and telnet. Built-in ARP and DOS defense system can effectively defense the ARP, DOS, and a variety of virus attack. It is also equipped with many powerful features: overall ACL, spanning tree, a storm suppression, Bandwidth Control, IGMP Snooping, Port security etc, very suitable for small and medium-sized enterprises, campus network, hotel and MAN tandem application.
Product features:
1. Support four-elements binding IP+MAC+RORT+VLAN, having the higher security;
2. It's unique in the industry with self-defense AUTO-DOS function in the kernel of BCM chip;
3. RJ45 ports of 6000V lightning-enhanced design can effectively extend the life of the product;
4. MSTP:support IEEE 802.1s standard, effectively prevent network loop storm, and downward compatibility to STP, RSTP;
5. Storm suppression:set broadcast, multicast and DLF flow rate;
6. IGMP Snooping: IGMP version 2 (RFC 2236): IGMP of Snooping is used establishing multicast group to forward the multicast packet when the multicast packet overflow network, avoid wasting bandwidth;
7. Powerful ACL access control list, support ACL based on the port, MAC, achieving network monitoring, flow regulation, priority weight markers as well as data forwarding control easily;
8. Seasoned security function: AAA certification, 802.1x certification, and defense ARP and DOS attack;
9. Line speed filtration-store--forward mode, providing the true non-blocking switching structure;
10. Support port mirroring, port aggregation, port rate limit function;
11. Gigabit SFP ports and electricity port 23, 24 to realize multiplex.
Product specification:
1. Hardware specifications
Product model 　　UKG2602GM-S
Supported protocols IEEE802.3、IEEE 802.3u、IEEE 802.3ad、IEEE 801.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1w、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az
Maximum frame length 16KB
VLAN 4K
MAC address 8K
Cache 4Mb
The backplane bandwidth 48Gbit
Port number 2 SFP optical ports, 24 RJ45 ports
Network medium 1000Base-LX: using long-wavelength laser (1310nm) crossed the Multimode and single mode fiber, multimode fiber 550m is the maximum distance, single mode is 10-24km.1000Base-SX:62.5 μ m multimode fiber maximum transmission distance is 275m, use 50 μ m multimode fiber maximum transmission distance of up to 550 meters10Base-T: cate-3 or more UTP; (support maximum transmission distance of 200m)100Base-TX: cate-5 UTP; (support maximum transmission distance of 100m)1000Base-T: Cate-5 UTP or 6 UTP; (support maximum transmission distance of 100m)
Filtering and forwarding rate 10Mbps:14880pps100Mbps:148800pps1000Mbps:1488000pps
Dimensions 440x280x44mm (1U19 inch standard chassis)
The use of environment Storage Temperature：-20℃～70℃；Storage humidity5％～90％Non-condensingOperating Temperature： 0℃～40℃；Operating humidity10％～90％Non-condensing
Power Input: 90-264VAC，50-60HZ,Output: 5V/6A
Power consumption Max.30W
2. Software specification
Safety characteristics IP+MAC+PORT +VLAN binding （red marked is the new function）ARP protectionDOS protectionPort protection802.1X certification
VLAN Port based VLAN802.1Q VLAN
ACL access control Standard IPExtended IP ACLMAC IP ACLMAC ARP ACL
Address table MAC bindingMAC filter
Storm control Broadcast suppressionMulticast suppressionThe inhibition of DLFInhibition rate
Flow control Half duplex control based on back-pressure Duplex frame based on PAUSE
Port mirroring Support flow mirroring of port
Port Management Port StatisticsPort speedStudy limitationsPort aggregation
Spanning tree MSTP (802.1s)
Multicast management IGMP Snooping multicast packet detection
System maintenance Configuration file downloadFile uploadSystem resetLog management
System management SNMP v1/v2RMONTELNETWEB interface
