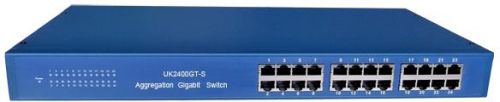

24-port Aggregation Gigabit Switch Uk2400gt-s

We are offering 24-port aggregation gigabit switch uk2400gt-s 24 10/100/1000m rj45 ports, it can achieve wire-speed non-blocking switching, while supporting flow control, very suitable for small and medium-sized enterprises, campus network, internet cafes and man edge use.
product key features:
1. It's unique in the industry with self-defense auto-dos function in the kernel of bcm chip;
2. Rj45 ports of 6000v lightning-enhanced design can effectively extend the life of the product;
3. Plug-n-play, easy to install and use;
4. All of ports support auto-negotiation function (speed / duplex mode);
5. Auto-maintain mac address list, and support bidirectional address learning functions;
6. Support auto-mdix function, auto-identify the straight-through cable and crossover cable;
7. Support long frame transmission;
8. Uk2400gt-s of gigabit rj45 port 23,24 can achieve port aggregation.
product technical specification:
product model uk2400gt-s
supported protocols ieee802.3、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee802.3z、ieee802.1q、ieee 802.3az、ieee 802.3ad
port number 24 rj45 ports
maximum packet length 16kb
mac address 8k
cache 4mb
network medium 10base-t: cate-3 or more utp; (support maximum transmission distance of 200m)100base-tx: cate-5 utp; (support maximum transmission distance of 100m)1000base-t: cate-5 utp or 6 utp; (support maximum transmission distance of 100m)
backplane bandwidth 48gbit
filtering and forwarding rate 10mbps:14880pps100mbps:148800pps1000mbps:1488000pps
led indication work on 1000m with green lights indicates
dimensions 230x440x44
use of environment operating temperature:0℃～50℃; working humidity: 10% ~90%. No condensing
storage temperature: -20 ℃ ~ 70 ℃; storage humidity: 5% ~ 90%. No condensing
power input: 90-264vac，50-60hz; output: 5v/6a
power consumption max.30w.
