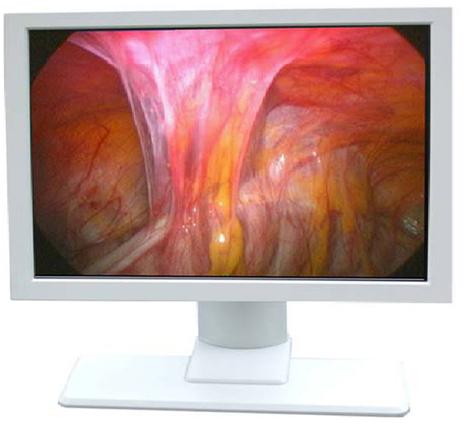

Contact SupplierWe offer 24 surgical grade lcd display.
Screen technology -tft am lcd
active screen size - 523.4 x 329.0 mm
aspect ratio (h:v) - 16:9
resolution - 1920x1200
pixel pitch - 0.270 mm
viewing angle (h ~ v) - 178°
maximum luminance - 400 cdm²
contrast ratio - 1000:1
color - 1.07 billion (rgb 8-bit data)
response time (tr + tf) - 7ms
scanning frequency (h; v) - 31~76 khz., 59~61 hz.
housing color - white
video input signals - dvi-i single link
vga (d15)
rgbs (4bnc)
s-video
composite video
component video
interface ports - 4bnc
composite video
4-pin mini din
d15
dvi-i
9pin d-sub
rs232
power requirements (nominal) - 100~240v
power consumption (nominal) - 100w max
power saving - epa, vesa standard
operating temperature - 0 to +40° c
storage temperature - -20° to +60° c
relative humidity - 10% to 90% (non-condensing)
supplied accessories - user manual
supplied accessories - video cables (dvi, vga, bnc, s-video)
supplied accessories - power cable
warranty 3 years
for more information, please see: http:www.highnessmicro.commmsd-2405.php
supplier product code : mmsd-2405
competitive advantages of the product
compatibility with most endoscopic, gastroscopic and laparoscopy cameras. Available in sizes 15", 19" for single-chip and 24", 26" for three-chip cameras with gamma settings and input ports such as vga, dvi-d, cvbs (bnc) s-video (din 4), ypbpr (bnc x3), rgbs (bnc x4).
main marketskey customers : medical & healthcare, surgery
delivery terms : ex-works mumbai or installation on-site
delivery lead times : standard lead time
min quantity : 1
price information : call inr
quality process certifications : bvqi, ul, sgs, ce, fcc.
