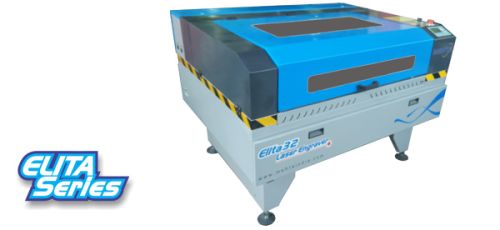

Elita Laser Engraver

Listing ID #4308644

Get Latest Price

Weight243 Kg
Minimum Letter Size1 mm (English Font)
InterfaceUSB interface
Operating SystemWindows XP, Windows 7 32bit
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Weight 243 Kg
Memory Buffer 100 MB (Max. 33 Files)
X, Y Cutting Area 3' x 2' (918 x 610 mm)
Overall Dimension 1200 x 1780 x 1060 mm
Maximum Cutting Thickness Up to 20mm Acrylic
Working Voltage Single Phase 220V/50Hz (Require Earthing)
Operating System Windows XP, Windows 7 32bit
Power Consumption 2 KW
X Y Movement System Linear guide way
Power Adjustment 0.1 to 100%
Z - Axis Movement Manual
Supported Format PLT, AI, DXF, BMP
Running Environment 45°C, Humidity 5% - 80%
Laser Power 80W
Minimum Letter Size 1 mm (English Font)
Interface USB interface
Travelling Speed 0.1 to 400 mm/s
Reposition Accuracy ±0.025mm
Operating Display Touch Panel
Driving System Stepper Motor

Features of Elita 32

• Special design of carriage where 2" lens or 5" lens both can be used. 5" lens gives you better quality of cutting, if the thickness of material is more than 10mm and 2" lens should be used for cutting media less than 10mm thickness.
• High quality touch panel display - very easy to use
• Pass through design for long length of work piece in Y-axis direction
• Machine is provided with foot-mounting legs so that there is no vibration in machine and machine can be adjusted on zero level
• As it is made in India, No waiting period for spare parts & quick service support
• Machine is provided with heavy duty compressor which has Air-assist combining adjustable focus systems in coaxial jet air to prevent cutting edge from burning down
• Laser cut software with window based software enhance cutting speed and angel / curve performance
• Laser seals the edges of fabric while cutting
• Maximum cutting thickness of acrylic - 20mm
• High quality of chiller unit for better performance and long life of laser tube

Chiller (Included)
1. Compact design, convenient for installation and operation.
2. All refrigeration components are international brand, which can     offer good and stable cooling effect.
3. The water cycling system is consisted of stainless steel pump     with instant flow and high lift, stainless steel water tank and PVC     connectors.
4. Equipped with flow switch which can output protect signal.
5. High and low temperature alarm signal output, which can output     normal close signal as options.
6. Digital display temperature controller, with multiple function     settings and error alarming.
