Application

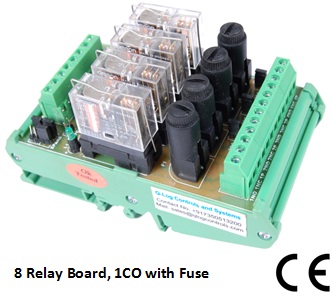

Relay Interface Module 1 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops secondary are galvanically isolated. Fast acting fuse is at NO point for short circuit protection.
COMPONENT SPECIFICATIONS
Relay: 24VDC coil,1 changeover Omron
Relay socket: 1 changeover PCB soldering type
Terminals: Screw type suitable for 2.5 sq. mm wires
Profile and end plates: Phoenix make
TECHNICAL SPECIFICATIONS
Input data:
Operating voltage: 24 VDC +- 10%
Input current: Max 20mA@24 VDCAC
Protection across relay coil: Free wheeling diode
Indication: 3mm LED
No of relays: 2 or 4 or 8
Terminals: Double decker screw type suitable for 2.5 sq. mm wires
Conductor size: 025-2.5 sq. mm
Insulation stripping length: 7 mm
Output Data:
Contact type: SPDT (1 changeover NO-Pole-NC)
Max. current: 10Amps@250 VAC or 30 VDC
Fuse protection: Available
Output wiring: Potential free
Terminals: Screw type suitable for 2.5 sq. mm wires
Conductor size: 025-2.5 sq. mm
Insulation stripping length: 7 mm
Module dimensions (HXLXD): 130x38x70 (2 Relay board) | 130x70x70 (4 Relay board) | 130x134x70 (8 Relay board)
