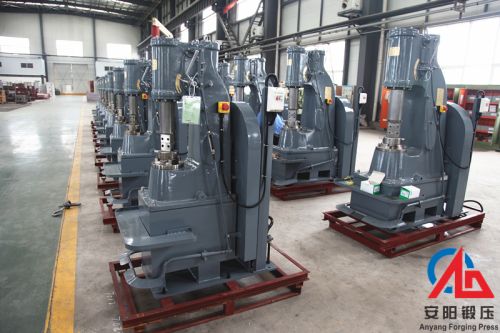

25 Kg Wrought Iron Air Power Hammer

introduction of 25 kg high quality air power hammer for wrought iron 25 kg high quality air power hammer are mainly applied for wrought iron etc blacksmith open die forging works. For example, drawing-out, upsetting, punching, forging welding etc. Besides, anyang power hammer also can be used for forging auto spare parts etc precision forging works. Anyang forging press company is the biggest forging equipment manufacturer in china, c41 series power forging hammer is one of our main products which are widely applied in general free forging works.

the advantage of anyang air power forging hammer:

1, anyang pneumatic forging hammer do not need an outside air compressor. Will compress air inside with motor-driven flywheel.

2, anyang power hammer save place in the workshop, no need do special foundation.

3, blacksmith power hammer ( c41-9, c41-15,c41-25,c41-40,c41-55,c41-75,c41-110 ) has single frame and good for forging work handling.

4, nanyang power hammer is able to with high-speed continuous strokes and good for titanium and other special alloy material free forgings.

5, anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence. All anyang power hammers have got ce.

the parameter of anyang air power forging hammer

model: c41-15

weight of falling parts (kg): 15

maximum hit energy (kj): 0.16

hit frequency (min): 300

height of working area (mm): 160

tup axis to frame front (mm): 140

motor type: y100l-4-b3

motor power (kw): 2.2

hammer weight (kg): 270

outside size (mm): 700*450*980
