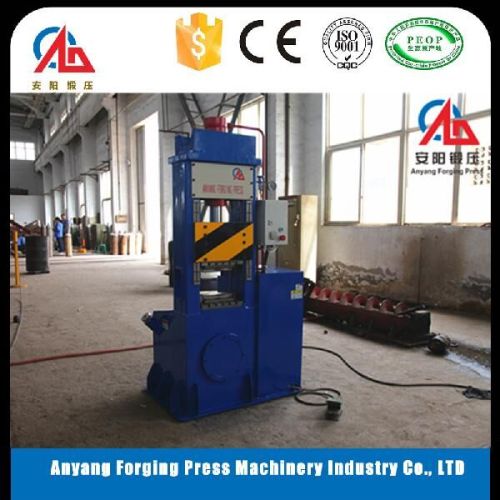

25 Ton Hydraulic Open Die Forging Press Machine

introduction of y04 series hydraulic forging press this hydraulic forging press is general forging press, used for different shapes of open die forging parts and forging processes, such as extension, upsetting, punching, heat cutting, forging, bending, twisting, punching, blanking, bending, correction and shallow drawing and other processes, applied in the fields of automobile, tractor, motor, electric appliance, instrument, daily hardware and defense industry.

parameter of hydraulic oped die forging press machine:

machine type: y04-25

nominal force: 25 ton

working speed (25mpa): 7 mm/s

downward idle speed: 40 mm/s

upward lde speed: 80 mm/s

distance between upper and lower work table: 400 mm

max stroke: 300 mm

work table (l*w): 300*200 mm

height of work surface to ground: 710 mm

pressure cylinder: diameter:11580, stroke:300

motor for hydraulic system: yl100l24-4b35 (n=3kw,n=1400rpm)

pump for hydraulic system: 25ycy14

power supply: single phase ac220v

rated system pressure: 25 mpa

hydraulic oil: yb-n46 antiwear hydraulic oil

outside size(*h): 1035*654*1890 mm
