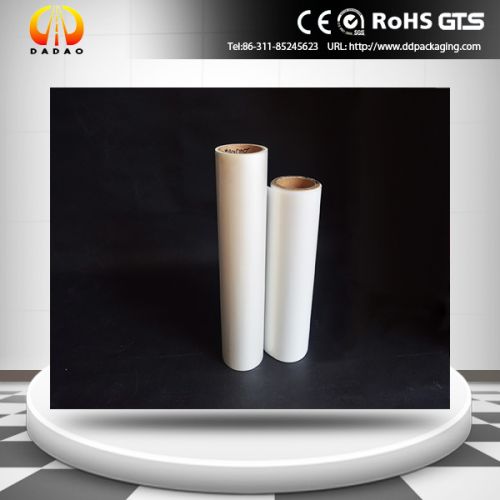

250Micron Milky White Insulation Polyester Film

250Micron Milky White Insulation Polyester Film Polyester film is mostly transparent while for thicker films very often a milky film is used for optical reasons. Polyester films have a very good mechanical strength and are resistant against the most oils, grease and solvents used in the transformer- and motor-industry. Under normal circumstances polyester film has a very long life cycle and could be used within a temperature range of - 60°C and + 180°C. Application: - Insulation of  Electrical Motors and Transformer, Capacitors and Electrical Cables- Thermal and Physical barrier- Release Liner Features: - Reduction of Volume and Weight- Higher Insulation Values- Higher Temperature Values- Increased Automatic Production Solutions - Higher temperature class up to 180° C ( class H ) Specification: Thickness :50-350μm Width :350-2000mm (others can be customized ) Other spec can be customized according to client`s requirement. Technical data sheet Item   Unit   Value   Test condition   Thickness   Um 100 125 150 188 200 250 GBT13542.1-2009 Tensile strength   MD   Mpa 196 179 180 182 182 171 GBT13542.2-2009   TD   200 190 205 193 195 177 Elongation at break   MD   % 131 137 165 170 176 185 GBT13542.2-2009 TD   100 114 112 110 106 115 Heat shrinkage (150℃,30min) MD   % 1.5 1.5 1.5 1.5 1.5 1.5 GBT13542.2-2009 TD   0.5 0.5 0.5 0.6 0.7 0.5 Haze   % 25 28 42.3 44.6 46.5 55.1
