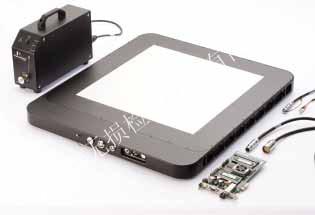

Contact Supplier2530 Model Flat Panel detector Model:PaxScan 2530 HE Quantity:1set Manufacturer:American Varian Parameters: Receptor Type: Amorphous SiliconScintillator: CsI, DRZ PlusActive Area: 24.9 x 30.2 cm (9.8 x 11.9 in.) Pixel Matrix: 1792 x 2176Pixel Pitch: 139 um2Energy range:20kV-16MV Filling factor: 64.3%Data Output Gigabit Ethernet Scan way: scan line by lineA/D Conversion: 16-bitsFrame rate: 9 fps (1x1),32 fps (2x2) Exposure control: user synchronous inputs, exposure OK outputs. Environmental condition: Temperature range-working status. . . . . 10°C to 40°C (max.) (environmental)-saving status. . . . . -15°C to +50°C Humidity-working status(Nowater dew). . . . 10% to 95% saving status(Nowater dew). .. . 10% to 95%    Impact resistance. . . . . IEC 60068-27    Seismic action   . . . . . . . IEC 60068-6 Manage standard U.S. .. UL60601-1 Canada .... CSA 22.2 No.601.1-M90 CE and FCC Part 15 Class A Mechanical parameters Weight 14.4 lbs +0.25 lbsHousing Material: Aluminum Filter material of input terminal: carbon fiber sheet(2mm thickness)&AlPower Frequency consumption: rating frequency 16.5W 12-32V voltage input range
