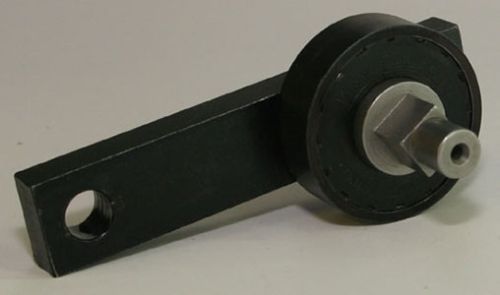

2536 One Way Roller Clutch

Dimension S0.375 in | 9.5 mm
Dimension L2.365 in | 60.1 mm
Dimension C0.74 in | 18.8 mm
DriveClockwise
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

BoreN/A
Dimension Q0.39 in | 10.0mm
Dimension O0.75 in | 19.1 mm
Add-OnsSpecial Housing With Arm
Dimension I0.38 in | 9.7 mm
Dimension L2.365 in | 60.1 mm
Dimension D1.55 in | 39.4 mm
Dimension S0.375 in | 9.5 mm
Dimension C0.74 in | 18.8 mm
Mounting10mm External Square
Max Speed2000 rpm
Dimension M0.38 in | 9.7 mm
Dimension A1.79 in | 45.5 mm
Dimension T0.39 in | 10.0mm
Dimension P0.375 in | 9.5 mm
DriveClockwise
Max Torque50 in/lbs | 5.6 Nm

Our 2536 One Way Roller Clutch come with a special housing that contains an arm too. We have parted our infrastructure into several units and one of them is warehouse wherein we keep a huge stock for furnishing urgent and quick requirements of the clients. For ensuring safety of the products during handling, warehousing and transportation, we make use of quality packing material. Moreover, the task of packaging is undertaken by the experts.
