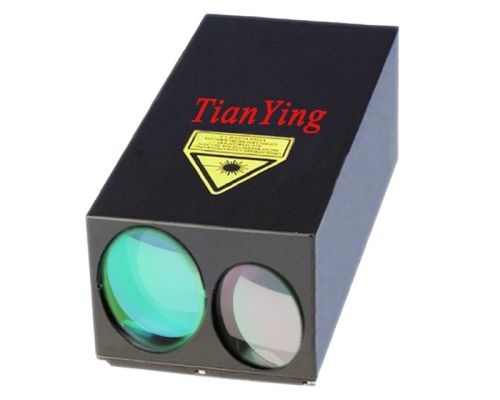

    25km 20Hz Diode Pumped Laser Rangefinder Designator Module
    • 25km 20Hz Diode Pumped Laser Rangefinder Designator Module
    • Video 1
    • 1578180
    • 1578181
    • 1578216

    25km 20Hz Diode Pumped Laser Rangefinder Designator Module

    ₹ 9.10 Lakh - ₹ 2.73 Cr / pc
    Get Latest Price
    • Power20 - 28V DC
    • Accuracy≤ 1m (RMS)
    • Size≤ 1500 cubic centimeters
    • Beam divergence≤ 0.3 mrad
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All Countries Except India
    View More Details
    Send Enquiry

    Company Information

    Yiwu TianYing Optical Instrument Co., Limitedverified-icon
    location China
    View Number
    • calendar Member Since 10 Years
    • building Nature of Business Supplier
    • Year of Establishment 2007

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Accuracy≤ 1m (RMS)
    • Power20 - 28V DC
    • Data interfaceRS422
    • Laser TypeCooled Diode-pumped +Nd:YAG
    • Designator target range displayYes
    • MTBF> 10000 hours
    • Life≥ One Million Range Measurements
    • Weight≤ 1800g with house, typical 1.2kg.
    • Continuous designator capability≥ 7km of 10m² vehicle.
    • Size≤ 1500 cubic centimeters
    • Pulse energy≥ 60mJ
    • Laser designator rate(programmable)20Hz work 25 seconds and rest 15 seconds cycle.
    • Boresight stability≤ 0.05mrad.
    • ModelTY-LR82
    • Operation Temperature-40ºC~+55ºC
    • Ranging capability≥ 9km for 10m² vehicle in 20km visibility, typical 11km.
    • CodeExternally slaved/Internally coded.
    • Wavelength1064nm
    • Beam divergence≤ 0.3 mrad
    • Measuring rateTypical 5Hz work 3 minues.
