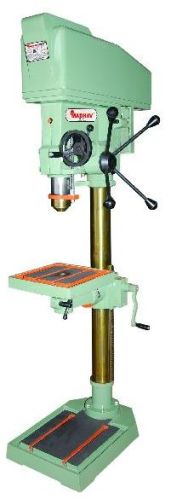

Our company is a major Manufacturer and Supplier of 25MM Pillar Drilling Machines in Bhavnagar. We are known for providing high-quality 25MM Pillar Drilling Machines made from high grade cast iron and EN bar to our clients. These 25MM Pillar Drilling Machines are not only well-designed, but they can be used for production as well tool room purposes. The 25MM Pillar Drilling Machines are used for tasks like drilling, boring, reaming and honing in steel, cast iron and various other materials.
| Drilling Capacity | 25 |
|---|---|
| Tapping Capacity | 19 |
| Column Diameter | 89 |
| Max. Dist. Spindle nose to Table | 700 |
| Max. Dist. Spindle nose to Base | 1035 |
| Dist. from Spindle center to Pillar Surface | 225 |
| Taper in Spindle | MT-3 |
| Spindle Travel | 177 |
| No. of Speed | 8 |
| Range of Speed | 116 to 2880 |
| Tilting Working Table | Fixed/360 Degree |
| Table Size | 300x300 |
| Base Size (Machined Area) | 320x285 |
| Over all Base Size | 560x370 |
| Over all Height with Guard | 1675 |
| V-Belt Section | B-48 |
| Motor 1440rpm 3ph 440v | 1HP |
