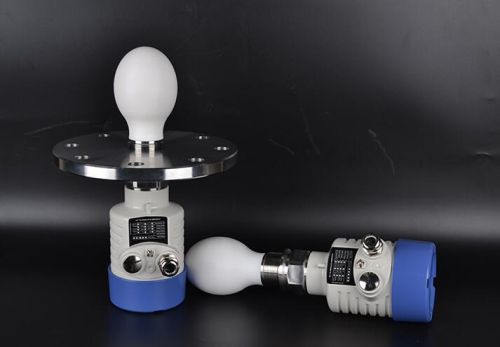

26GHz Pulse Radar Level Gauge, Brand Name : OEM

MOQ1 Set(s)
Brand NameOEM
Number Of Flowerpulse radar
Country of OriginCN
Model NumberANL-8260L
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Specifications product type anl-8260L frequency 26ghz range 20m30m70m80m resolution 1mm accuracy ±10mm hysteresis ±5mm dead-zone 0.6m interval ≥1s, subject to....

View More Details

Send Enquiry

Company Information

Chinasimba Electronic Co.Ltd

Fuzhou

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specifications
product type anl-8260L
frequency 26ghz
range 20m30m70m80m
resolution 1mm
accuracy ±10mm
hysteresis ±5mm
dead-zone 0.6m
interval ≥1s, subject to parameters
response time ≥5s, subject to parameters
beam angle ＜8°
power supply 16.36vdc(24vdc typical)
signal output 4.20ma, 2-wire4-wire
communication hart
load 500ω
failure output no change22ma20.5ma4ma(option)
display & keyboard 128*64dot graphic lcd
temperature -40..85℃
humidity ≤95%rh
casing material aluminium alloy
antenna material ss304ss316
pressure atm
dimension 120mm x 94mm x 490mm(no flange)
cable entry m20x1.5
cable awg18 or 0.75mm2
protection ip67
installation flange, dn100dn150dn200.
