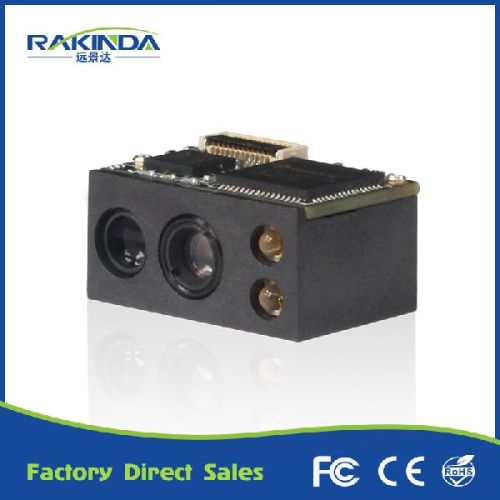

2D Barcode Reader

₹ 13,650 / Piece

MOQ1 Piece(s)
Scan Angle**Roll: 360°, Pitch: ±55°, Skew: ±55°
Weight5.0g
Symbol Contrast≥ 30% reflectance difference
Symbologies 2DPDF 417, Data Matrix（ECC200,ECC000,050,080,100,140）, QR Code 1D Code 128, EAN-13, EA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Scan Angle**Roll: 360°, Pitch: ±55°, Skew: ±55°
Rated Power Consumption0.76 W
InterfaceTTL-232, USB (optional)
Operating Voltage3.3±10% VDC
Image Sensor752×480 CMOS
IlluminationRed LED 625±10 nm
Weight5.0g
Field of ViewHorizontal 36°; Vertical 23°
Dimensions21.17(W)×14.6(D)×11.52(H)mm
Reading Precision≥ 5mil
ProcessorIOTC 2D decoder chip 48MHz
Symbologies 2DPDF 417, Data Matrix（ECC200,ECC000,050,080,100,140）, QR Code 1D Code 128, EAN-13, EA
Symbol Contrast≥ 30% reflectance difference

1.Top quality with fast delivery, Diagonal keyhole, SE955 seamless replacement motor
2.One design, UIMG core technology can be adapted to a variety of screen and paper 1D and 2D barcode fast scanning

Additional Information

Payment Terms L/C, T/T, Western Union
Port of DispatchShenzhen port
Packaging DetailsPacked in cartons ,10pcs one black plastic case ,100pcs one carton
Delivery Time5 days
