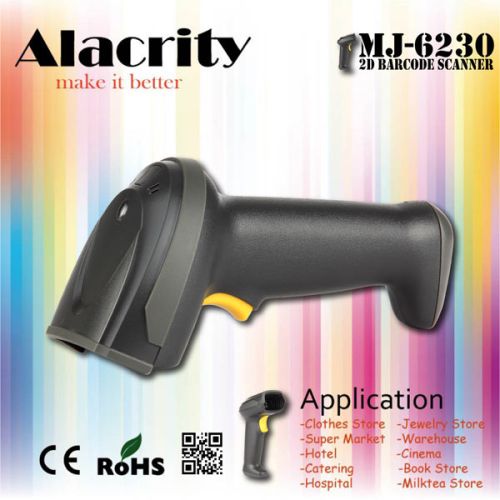

2d Barcode Scanner, Brand Name : Alacrity, Packaging Type : Grey

We are offering qr code reader 2d barcode scanner
main feature:
- read all major 1d and 2d barcode symbologies
- read barcode symbology on phone screen
- read inverse barcode symbology
- read dpm barcode symbology
- lifetime scratch and abrasion resistance as the exit window made by chemically tempered float glass
- with ip52 high performance ingress protection
- reliable safety design with ce, emc, rohs, class I laser safety, photobiological safety approval
- passed 50+ times of 2.0m (6.6ft) drop to concrete
- ready for all pos systems
- easy firmware upgrade
- flexible software customization
- ergonomic, snappy and stylish design
technical parameter
resolution 752*480
light source led(630 nm ± 10 nm)
image sensor cmos
precision ≥5 mil
interface rs232 / hid-kbw / usb com port emulation / ps2-kbw
decode capability 1-d:code128, ean-13, ean-8, code39, upc-a, upc-e, codabar, china post 25, interleaved 2 of 5, isbn/issn, code 93, ucc/ean-128, gs1 databar, etc.
2-d:pdf417, qr code(model 1/2), data matrix(ecc200, ecc000, 050, 080,100,140), aztec, maxicode, etc.
Light intensity 300 lux (130 mm )
depth of scan field 25 mm ~ 220 mm
print contrast signal ≥ 30%
scanning angle ±45°, ±45°, 360° (skew, pitch, roll)
illumination 0 ~ 100,000 lux
power consumption 1.65w
voltage dc 5v
current max:330 ma
working:290 ma
idle:200 ma
case material pc
dimensions h*w*l:9.1cm*6.9cm*18.8cm
temperature 0° to 50°c (32° to 120°f), operating; -40° to 60°c (-40° to 140°f), storage
humidity: 5% to 95% (non-condensing
safety esd: 15 kv area discharge; 8 kv contact discharge
emc: en 55022, en 55024
electrical safety: en 60950-1
drop resistance: multiple 2.0m (6.6 ft) drops to concrete
protection class: ip52
